Shipco 110DF56J3B Shipco 110D-3PH Pump & Motor Assembly 1/3HP 208-230/460V 56J

Product Description

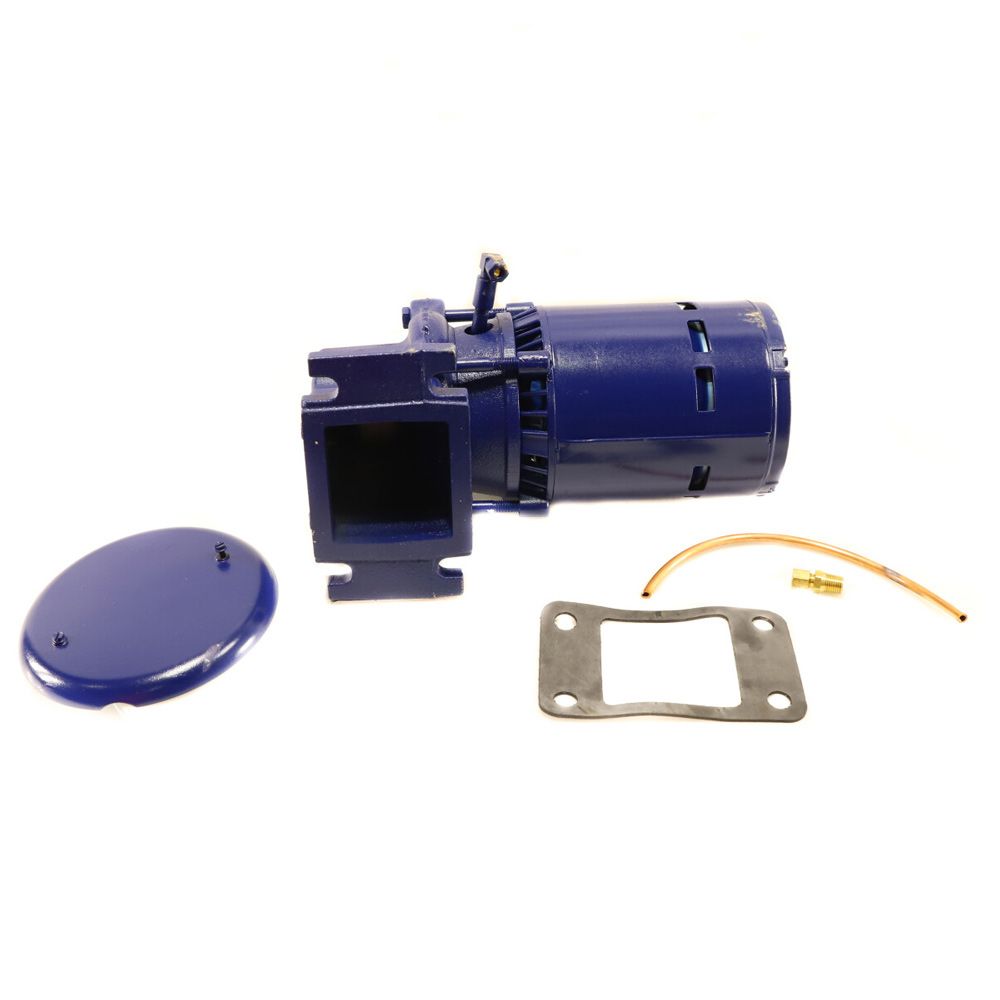

The Shipco Model D Type 110DF56J3B is a centrifugal pump designed for hydronic heating and cooling systems. It features a three-phase motor that runs at one third of a horsepower and operates at 3450 RPM, with voltage options of 208-230/460V. This pump is intended for use in commercial applications.

• Centrifugal design for efficient water movement
• Includes flanges for easier installation
• Constructed with cast iron and bronze fittings for durability

Product Highlights

This pump is suitable for pumping water in closed loop systems and is equipped with bleed lines to prevent vapor binding.

Product Information

Standard Information

• Brand: Shipco
• MPN: 110DF56J3B

Technical Specifications

• Model: 110D-3PH
• Series: 110 Series
• Pump Connection: Flanged
• Flanges Included: Yes
• Pump Class: Centrifugal
• Pump Construction: Cast Iron-CI
• Potable Water: No
• Pump Mounting: Tank-Mounted
• Motor HP: 1/3 HP
• Motor Phase: 3 Ph
• Motor Hertz: 60 Hz
• Motor RPM: 3450 RPM
• Motor Voltage: 208-230/460V
• Max Temp: 230°F
• Weight: 39.77
