Product Description

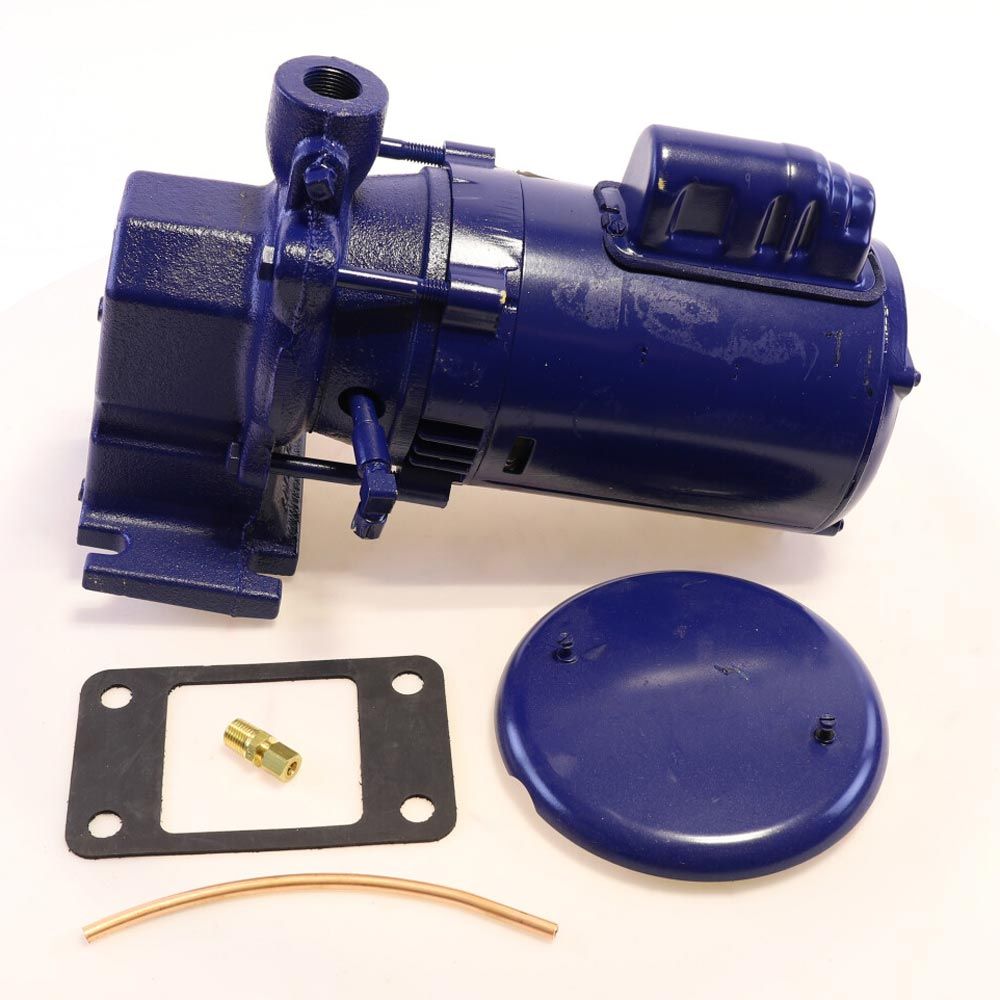

The Shipco 110DF56J1B-WMI is a pump and motor assembly designed for hydronic heating and cooling systems. It features a centrifugal pump that effectively transfers water through closed loop systems, suitable for commercial applications. The assembly includes a single-phase 1/3 horsepower motor operating at 3450 RPM with voltages of 115/208-230. The unit is constructed from cast iron with bronze fittings, and features a tank-mounted design for ease of installation.
- Cast iron construction with bronze fittings
- Single-phase motor, 1/3 HP with 3450 RPM
- Flanges included for easy connections
Product Highlights
This assembly is ideal for hydronic systems in commercial settings, providing reliable performance and durability.
Product Information
Standard Information
-
Brand: Shipco
-
MPN: 110DF56J1B-WMI
Technical Specifications
-
Model: 110D-1PH
-
Series: 110 Series
-
Pump Connection: Flanged
-
Flanges Included: Yes
-
Pump Class: Centrifugal
-
Pump Construction: Cast Iron-CI
-
Potable Water: No
-
Pump Mounting: Tank-Mounted
-
Motor HP: 1/3 HP
-
Motor Phase: 1 Ph
-
Motor Hertz: 60 Hz
-
Motor RPM: 3450 RPM
-
Motor Voltage: 115V
-
Max Temp: 230°F
-
Weight: 36.24
