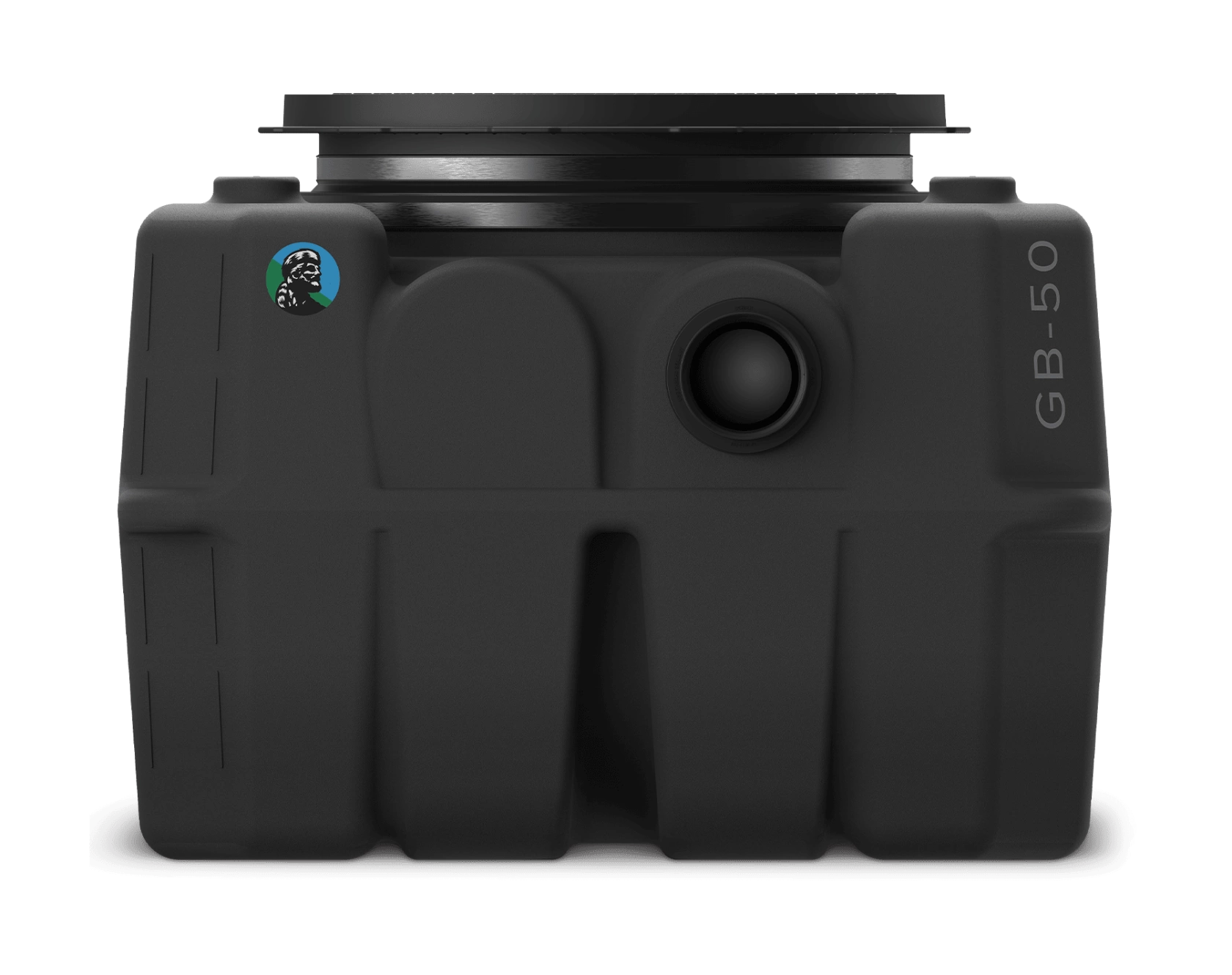

Shier GB-50 Gb-50 Grease Interceptor

Product Description

The SHIER GB-50 offers best-in-class certified grease capacity and 20% kitchen solids waste capacity. It can be installed above grade (on the ground) or buried below grade, as well as indoor or outdoor. The triple outlet feature allows for installation flexibility, including the ability to connect an unused outlet for remote pumpout.

• Rugged polyethylene tank body
• No flow control required , first in the industry certified to Type D of the ASME standard
• Safety Star® access restrictor prevents accidental entry

Product Highlights

This grease interceptor is listed by IAPMO to hydromechanical grease interceptor standards ASME A112.14.3 and CSA B481.1.

Product Information

Standard Information

• Brand: SHIER
• Manufacturer Part Number: GB-50
• Country of Origin: USA

Technical Specifications

• Flow Rate/Grease Capacity: 50 GPM / 439 lbs 75 GPM / 287 lbs
• Solids Capacity: 13 gal
• Liquid Capacity: 65 gal
• Weight: 100 lbs
• Installation Location: Indoor/Outdoor
• Grease Interceptor Part Number: 4025-300-01
• Cast Iron Cover Part Number: 8044-000-01
• Flow Rate: 50 GPM
• Grease Capacity: 439.5 lbs. @ 50 GPM
• Connections: 4" FPT Inlet/Outlet with 4" Plain End Adapters
• Max Operating Temperature: 150°F Continuous
• Cover: Two Cast Iron Covers
• Width: 37.00 (in)
• Height: 28.50 (in)
• Depth: 32.25 (in)
