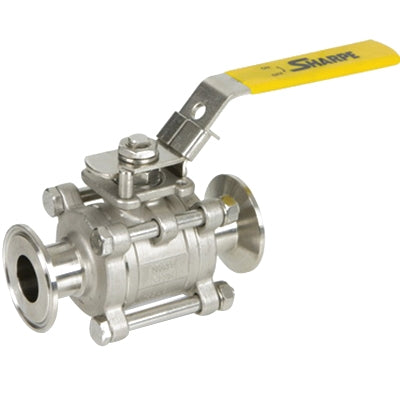

Sharpe Valves SVN6666MTCE006 Sanitary Ball Valve with Locking Lever Handle 3/4 in Clamp End

Product Description

The Sharpe Valves SVN6666MTCE006 is a sanitary ball valve designed for optimal performance in various applications. This product is constructed from 316 stainless steel, ensuring durability and resistance to corrosion. The valve features a full port design and a locking lever handle for improved user control and safety.

• High cycle stem packing for extended service life.
• Live loaded stem with belleville washers for reliable sealing.
• PTFE seals and thrust washer for enhanced performance.

Product Highlights

This valve is suitable for applications requiring high purity and sanitary standards.

Product Information

Standard Information

• Brand: Sharpe Valves
• Manufacturer: Smith-Cooper International

Technical Specifications

• Ball Material: 316 Stainless Steel
• Connection Size: 3/4 in
• Connection Type: Clamp End
• Dimension: 4 in L
• Flow Co-Efficient: 30 Cv
• Item Name: Sanitary Ball Valve with Locking Lever Handle
• Material Specifications: CF8M
• Operator Type: 300 Stainless Steel Lever Handle
• Pressure Rating: 1000 psi CWP
• Seal Material: PTFE
• Seat Material: TFE
• Series: N66
• Stem Material: 316 Stainless Steel
• Temperature Rating: 450 deg F
• Type: 3-Piece, Full Port Tube, Economy
