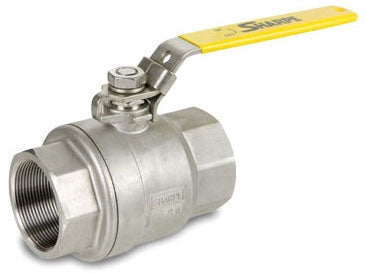

Sharpe SV50M76020 2, FPT x FPT, 1000 PSI WOG/CWP, 150 PSI SWP, 316 Stainless Steel, Full Port, Locking Lever Handle, 2-Piece, Ball Valve

Product Description

The Sharpe SV50M76020 is a two-piece ball valve made of durable 316 stainless steel. It features female threaded connections and is rated for a pressure of one thousand PSI WOG/CWP. This ball valve is ideal for various industrial applications.

• Type: 2-Piece
• Pressure Rating: 1000 PSI WOG/CWP
• Temperature Rating: 400 Deg F

Product Highlights

This valve is designed with a locking lever handle for secure operation. It has a full port design to facilitate maximum flow and reduce pressure drop.

Product Information

Standard Information

• Manufacturer: Sharpe
• Nominal Size: 2 Inch

Technical Specifications

• End Connection: Female Threaded x Female Threaded
• End to End Distance: 5.27 Inch
• Ball Material: 316 Stainless Steel
• Body Material: ASTM A351 CF8M 316 Stainless Steel
• Stem Material: 316 Stainless Steel
• Seat Material: PTFE
• Seal Material: PTFE
• Handle Material: 300 Series Stainless Steel
• Port Type: Full
• Flow Rate: 241 Cv
• Inclusions/Features: Blowoutproof Stem
• Applicable Standard: ASME B16.11/B16.34
• Application: Industrial, Automation and Control
