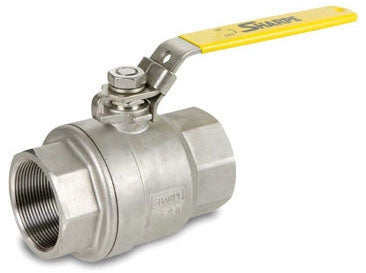

Sharpe SV50M76012 1-1/4 Inch Stainless Steel Full Port Ball Valve 1000 PSI WOG/CWP

Product Description

The Sharpe SV50M76012 ball valve is engineered for precision performance in industrial, automation, and control settings. With dimensions of 1-1/4 inch FPT x FPT, it boasts a 1000 PSI WOG/CWP and 150 PSI SWP.

• Robust 316 stainless steel construction ensures durability and resistance to corrosion.
• Full port design maximizes flow and reduces pressure drop.
• Features a locking lever handle for secure operations.

Product Highlights

This valve's construction includes a PTFE seat and seal material, providing excellent chemical resistance and temperature tolerance up to 400 degrees Fahrenheit. The stem is blowout-proof, enhancing safety and reliability.

Product Information

Standard Information

• Applicable Standard: ASME B16.11/B16.34
• Connection Type: Female Threaded x Female Threaded

Technical Specifications

• End to End Distance: 3.8 inches
• Ball Material: 316 Stainless Steel
• Body Material: ASTM A351 CF8M 316 Stainless Steel
• Stem Material: 316 Stainless Steel
• Seal Material: PTFE
• Seat Material: PTFE
• Flow Rate: 81 Cv
