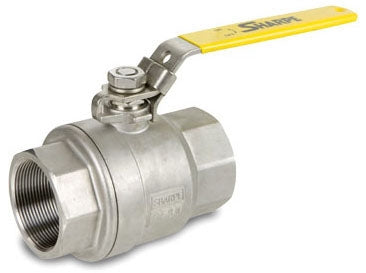

Sharpe SV50M76010 1 Inch Stainless Steel Full Port Ball Valve with Locking Lever Handle

Product Description

The Sharpe SV50M76010 is a robust ball valve designed for industrial automation and control systems. Manufactured with high-grade 316 stainless steel, this valve ensures durability and corrosion resistance in demanding environments. Its full port design optimizes flow rate, making it suitable for a variety of fluid applications.

• Equipped with a secure locking lever handle for safety and operational reliability.
• Features a blowout-proof stem and PTFE seats and seals for enhanced performance.
• Complies with ASME B16.11 and B16.34 standards, ensuring quality and safety.

Product Highlights

This ball valve is specifically crafted to handle pressures up to 1000 PSI WOG/CWP and a temperature maximum of 400 degrees Fahrenheit, making it an ideal choice for high-pressure systems.

Product Information

Standard Information

• Nominal Size: 1 inch
• Pressure Rating: 1000 PSI WOG/CWP, 150 PSI SWP

Technical Specifications

• Body Material: ASTM A351 CF8M 316 Stainless Steel
• Stem Material: 316 Stainless Steel
• Seal Material: PTFE
• Handle Material: 300 Series Stainless Steel
• End Connections: Female Threaded x Female Threaded
• End to End Distance: 3.25 inches
• Port Type: Full
• Temperature Rating: 400 Deg F
