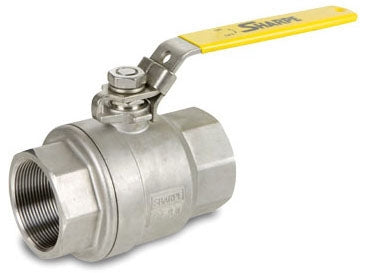

Sharpe SV50M76006 Stainless Steel Ball Valve 3/4 Inch Full Port 1000 PSI

Product Description

Designed for optimized flow control, the Sharpe SV50M76006 Stainless Steel Ball Valve is essential for professionals in plumbing and industrial applications. This durable ball valve features a robust 316 stainless steel construction, making it suitable for heavy-duty use.

• Locking lever handle ensures secure operation.
• Full port design for unrestricted flow.
• Pressure rated up to 1000 PSI WOG/CWP and 150 PSI SWP.

Product Highlights

The valve's locking mechanism is ideal for both industrial settings and automated process control. Equipped with a blowout-proof stem for added safety, this valve operates efficiently up to 400 degrees Fahrenheit.

Product Information

Standard Information

• Type: 2-Piece
• Actuation Type: Locking Lever Handle
• Standard: ASME B16.11/B16.34

Technical Specifications

• Nominal Size: 3/4 Inch
• End Connection Type: Female Threaded
• Body Material: ASTM A351 CF8M 316 Stainless Steel
• Seal Material: PTFE
• Handle Material: 300 Series Stainless Steel
• Flow Rate: 35 Cv
• End to End Distance: 2.75 Inch
