Sharpe SV50M76002 1/4, FPT x FPT, 1000 PSI WOG/CWP, 150 PSI SWP, 316 Stainless Steel, Full Port, Locking Lever Handle, 2-Piece, Ball Valve

Product Description

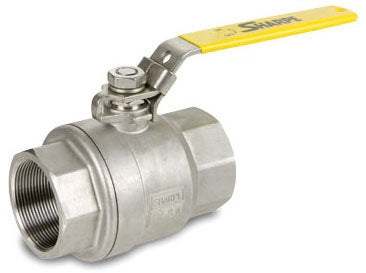

The Sharpe SV50M76002 is a two-piece ball valve that features a locking lever handle and is designed for efficient flow control. This valve has a nominal size of one-quarter inch and is constructed from durable 316 stainless steel. It is suitable for industrial applications and has a pressure rating of 1000 PSI for water, oil, and gas, and 150 PSI for steam. The valve is designed for full port flow and offers blowout-proof stem features for enhanced reliability.

• Durable 316 stainless steel construction
• Temperature rating of four hundred degrees Fahrenheit
• End connection type: Female threaded x Female threaded

Product Highlights

This valve is designed for use in industrial automation and control systems.

Product Information

Standard Information

• Manufacturer: Sharpe
• UPC: Not provided

Technical Specifications

• Actuation Type: Locking lever handle
• Ball Material: 316 stainless steel
• Body Material: ASTM A351 CF8M 316 stainless steel
• End Connection: Female threaded x female threaded
• End to End Distance: 2 inches
• Handle Material: 300 series stainless steel
• Port Type: Full
• Pressure Rating: 1000 PSI WOG/CWP, 150 PSI SWP
• Seal Material: PTFE
• Seat Material: PTFE
• Stem Material: 316 stainless steel
• Temperature Rating: 400 degrees Fahrenheit
• Inclusions/Features: Blowout-proof stem
• Applicable Standard: ASME B16.11/B16.34
• Flow Rate: 6 Cv
