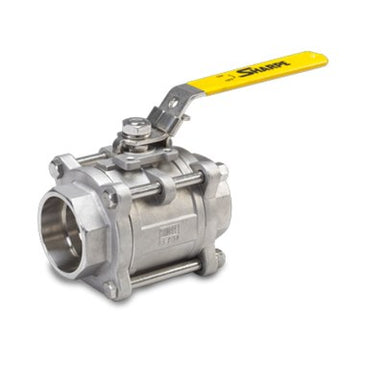

Sharpe 53036TE-34 Ball Valve - 3/4 Inch Full Port Threaded

Product Description

The Sharpe 53036TE-34 is a three-piece ball valve made from 316 stainless steel. It has a full port design that allows for unrestricted flow. The valve comes with threaded end connections for easy installation. A locking lever handle provides manual operation for reliable valve positioning. The PTFE body seal ensures a tight closure. This valve operates efficiently in systems with pressure ratings up to 1000 psi and temperature limits from zero to four hundred fifty degrees Fahrenheit.

• Designed for high-pressure systems up to 1000 psi
• Full port design increases flow capacity
• Equipped with a blow-out proof stem for added safety

Product Highlights

This ball valve is ideal for applications requiring durability and corrosion resistance. The robust construction makes it suitable for various plumbing systems.

Product Information

Standard Information

• Brand: Sharpe Valves
• Product Type: 3-piece ball valve

Technical Specifications

• End Connection: Threaded
• Handle Type: Locking lever
• Material: 316 stainless steel
• Port Type: Full port
• Pressure Rating: 1000 psi
• Temperature Range: 0 to 450 degrees Fahrenheit
• Inlet to Outlet Length: 3.34 inches
• Nominal Size: 3/4 inch
• Orifice Size: 0.79 inches
• Top to Inlet Center: 2.47 inches
• Trim Material: 316 stainless steel stem and RTFE seat
