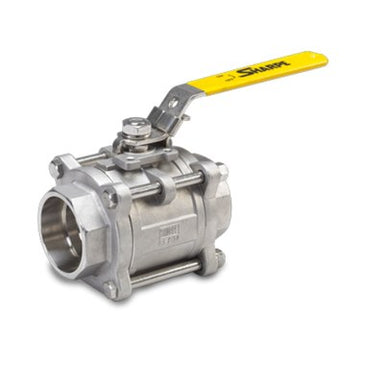

SHARPE 53036TE-112 316 Stainless Steel Ball Valve

Product Description

The SHARPE 53036TE-112 is a three-piece ball valve made from 316 stainless steel. This valve features threaded end connections and a locking lever handle for controlling the flow of liquids or gases. The full port design allows for optimal flow without restriction. This valve is ideal for applications that require resistance to corrosion and long-lasting durability. The included PTFE seal enhances its performance in various conditions.

• Three-piece construction for easy maintenance
• Full port design ensures maximum flow
• Features a locking lever handle for secure operation

Product Highlights

This ball valve is designed to handle tough environments while providing reliable sealing performance.

Product Information

Standard Information

• Brand: SHARPE
• MPN: 53036TE-112

Technical Specifications

• Material: 316 stainless steel
• End Connection: Threaded
• Handle Type: Locking lever
• Port Type: Full port
• Pressure Rating: 1000 psi
• Seal Material: PTFE
• Nominal Size: 1-1/4 inches
• Temperature Rating: 0 to 450 degrees F
• Ball Material: 316 stainless steel
• Body Material: 316 stainless steel
• End Style: FNPT
• Inlet to Outlet Length: 4.33 inches
• Orifice Size: 1.26 inches
• Series: 53036
• Softgoods Material: PTFE
• Top to Inlet Center: 3.08 inches
