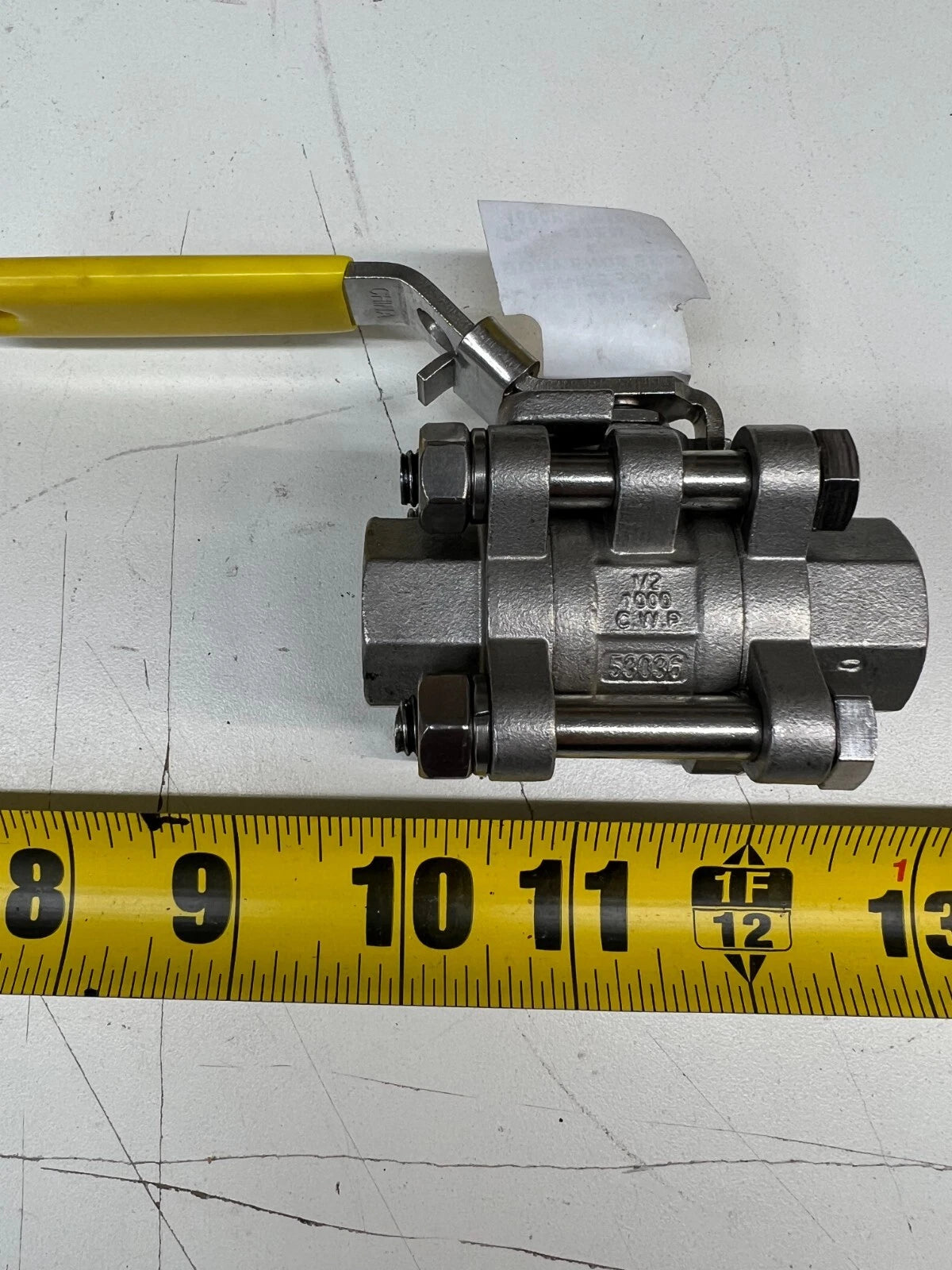

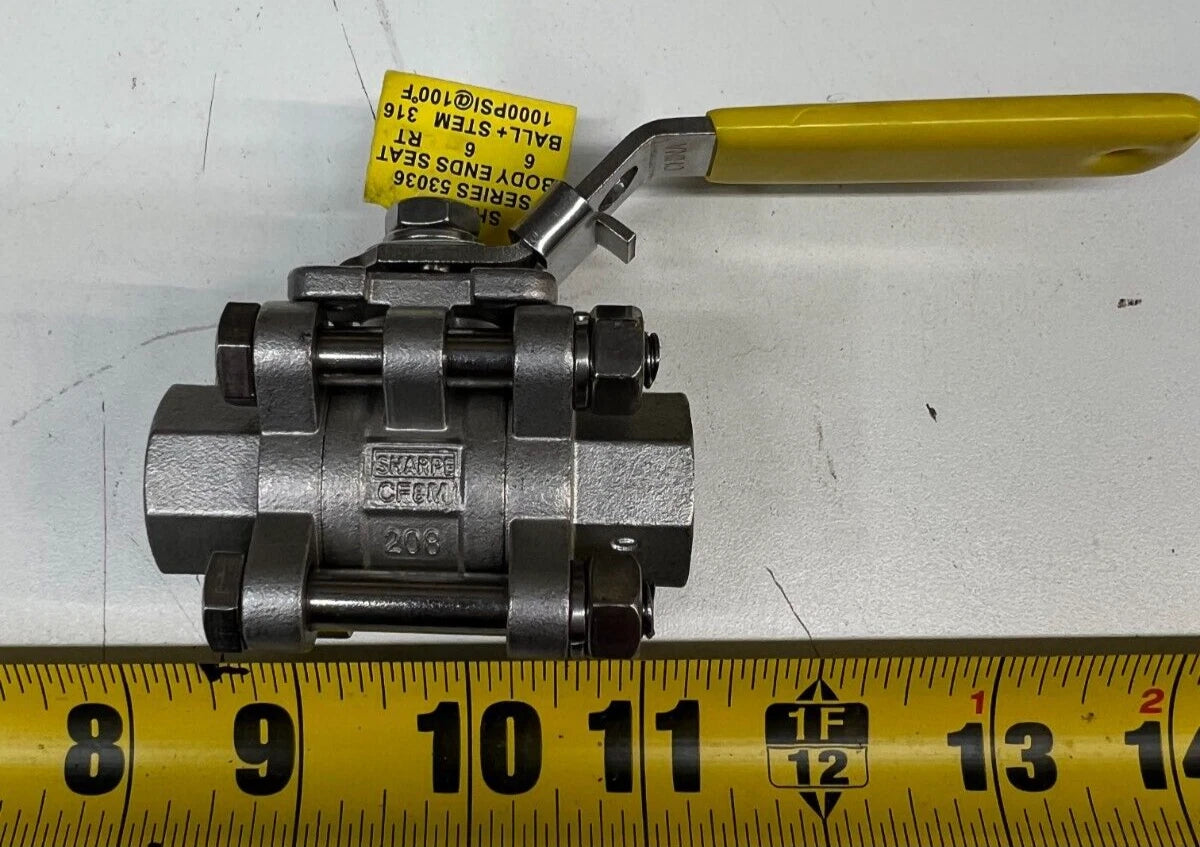

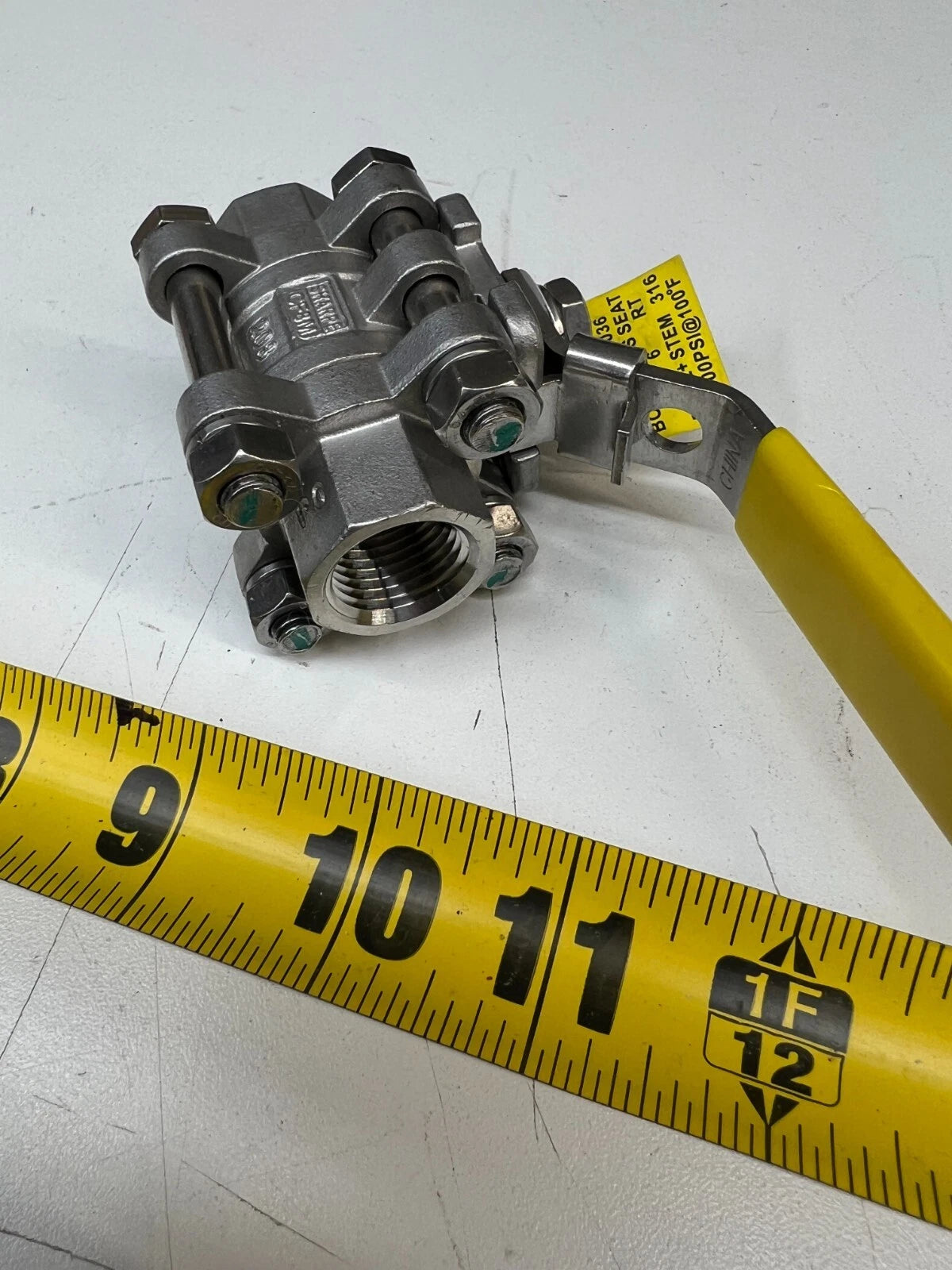

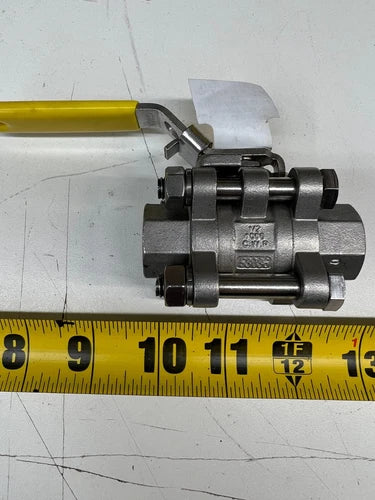

SHARPE 53036SW-2 Ball Valve 2 in Socket Weld

Product Description

The SHARPE 53036SW-2 is a ball valve that is ideal for industrial use. This product features a durable 3-piece body made from 316 stainless steel, known for its excellent corrosion resistance. The valve allows unrestricted flow due to its full port design, making it suitable for various applications including water, air, wastewater, oil, and fuel. It is manually operated using a secure locking lever handle for ease of use. The valve is designed with socket weld end connections to ensure a reliable fit.

• Made with 316 stainless steel
• Full port design for unrestricted flow
• Socket weld end connections for secure installation

Product Highlights

This ball valve is essential for various fluid control methods in industrial settings.

Product Information

Standard Information

• Brand: Sharpe Valves
• MPN: 53036SW-2

Technical Specifications

• Material: 316 Stainless Steel
• End Connection: Socket Weld
• Port Type: Full Port
• Valve Type: Ball Valve
• Body Style: 3 piece
• Valve Seat Material: RTFE
• Seal Material: PTFE
• Pressure Class: 1000#
• WOG Rating: 1000 psi
• Valve Operation: Manual
• Valve Operator: Locking Lever Handle
• Suitable Media: Water, Air, Wastewater, Oil, Fuel
• Technical Standard: National Pipe Taper (NPT)
• Valve Size: 2 in
• Diameter: 1 1/2 in
• Valve Stem: Blowout-proof
• Length: 5-29/50 in
• Weight: 9.7 lb
• Handle Material: Stainless Steel
• Material Type: 316
• ASME: ASME B16.11, ASME B16.34
• ASTM: ASTM A-351 Grade CF8M
• Collection: Series 5303
