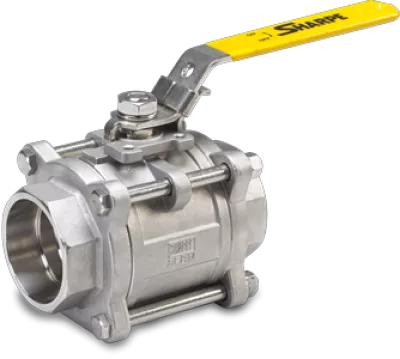

SHARPE 53036SW-1 Ball Valve

Product Description

The Sharpe 53036SW-1 Ball Valve is a three-piece construction made from 316 stainless steel. This ball valve offers a full port design, promoting unrestricted flow. It features socket weld end connections and a lever-operated locking handle for ease of use. The valve is designed with RTFE seats and a PTFE body seal, ensuring reliability.

• Manufactured to ASME B16.11 and B16.34 standards.
• Pressure ratings up to 1000 CWP.
• Temperature range from zero to four hundred fifty degrees Fahrenheit.

Product Highlights

This valve includes a blow-out proof stem and an ISO 5211 mounting pad for automation functionalities.

Product Information

Standard Information

• Brand: Sharpe
• MPN: 53036SW-1

Technical Specifications

• Size Range: NPS 1/4-4 (DN 8-100) full port
• Pressure Rating: 1000 CWP
• Body Material: 316 Stainless Steel
• Standard: MSS SP-110
• End Connections: Threaded, Socket Weld, Butt Weld
• Seat Material: RTFE Seat
• Actuator Type: Lever Operated
• Inlet to Outlet Length: 3.62 inches
• Nominal Size: 1 inch
• Orifice Size: 1.33 inches
• Port Type: Full
• Series: 53036
• Temperature Rating: 0 to 450 degrees Fahrenheit
