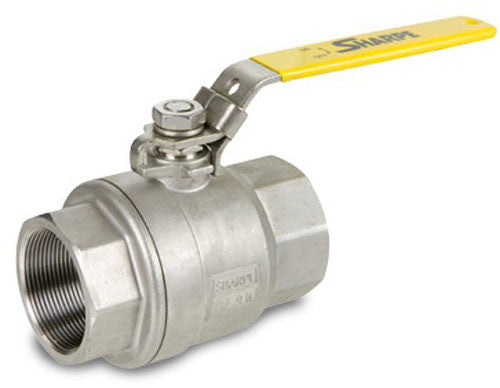

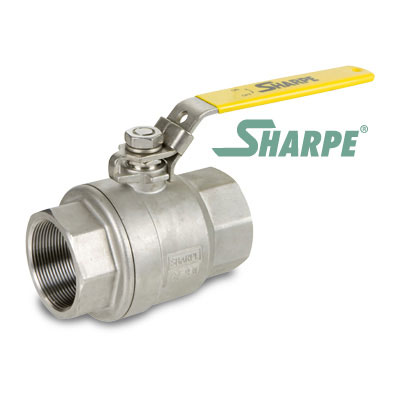

SHARPE 50M76-38 Stainless Steel Ball Valve 1/2 in

Product Description

The Sharpe 50M76-38 is a ball valve made from high-quality 316 stainless steel. This durable valve has a two-piece body design and is ideal for various applications, including water, oil, and gas management.

• Constructed with 316 stainless steel for enhanced corrosion resistance.
• Features 1/2 in. NPT threaded connections for easy installation.
• Incorporates a locking lever handle for secure and controlled operation.

Product Highlights

This valve features a blow-out proof stem and can handle pressures up to 1000 lb. WOG and 150 lb. WSP for steam.

Product Information

Standard Information

• Brand: Sharpe
• Type: Ball Valve

Technical Specifications

• Size: 1/2 in.
• Product Type: Full Port
• Pressure: 1000 PSI
• Material: Stainless Steel
• Weight: 0.70 LBS
• Full Port: true
• 1000 CWP: true
• 316 Stainless Steel ASTM A351 CF8M: true
• Threaded Ends Connections: true
• Blow-out Proof Stem: true
• Lockable Lever Handle: true
• Threaded Ends ASME B16.11: true
