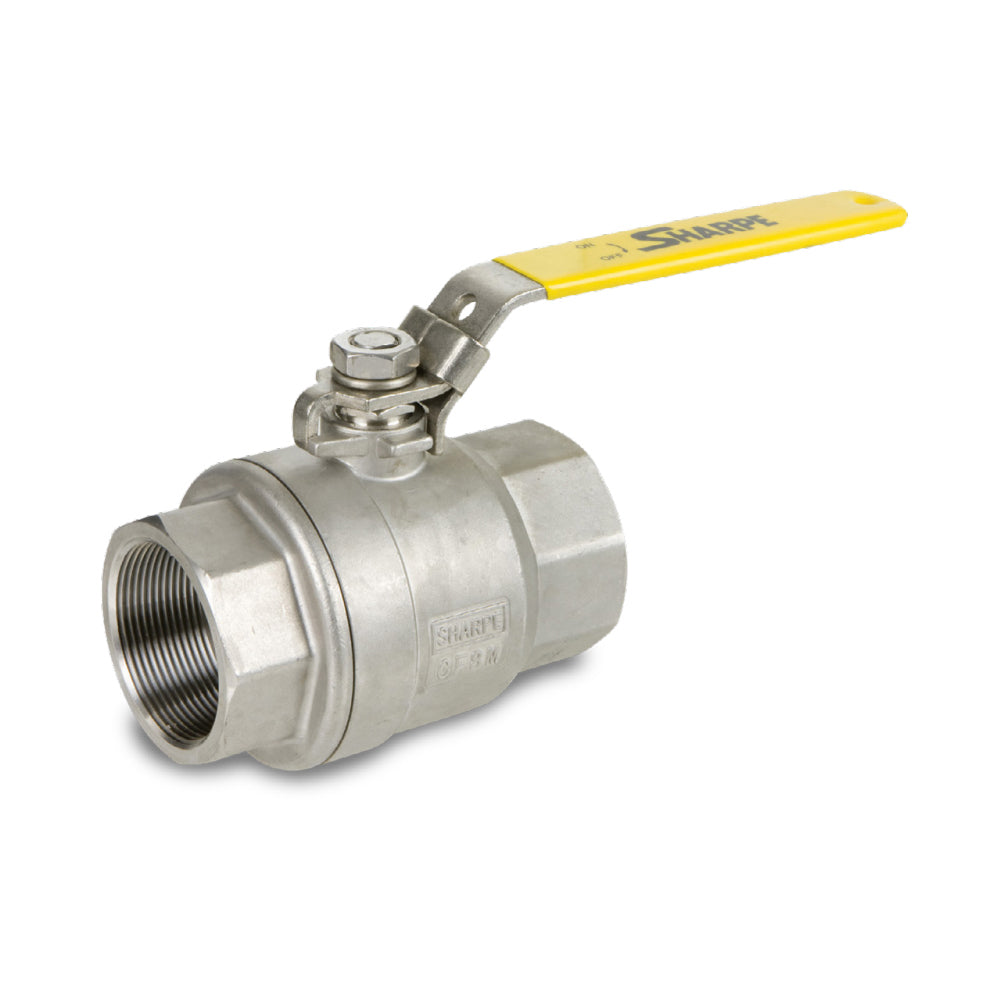

Sharpe 50M76-14 Ball Valve Stainless Steel Threaded Locking Lever Full Port

Product Description

The Sharpe 50M76-14 ball valve features a two-piece construction made from stainless steel. It is designed to efficiently manage fluid flow with minimal restriction thanks to its full port design. The valve is equipped with a threaded end connection, ensuring a secure fit for high-pressure environments up to 1000 WOG/CWP. A blowout-proof stem enhances safety and reliability during operation.

• Constructed from durable stainless steel
• Threaded end connections for easy installation
• Locking lever handle ensures secure closure

Product Highlights

This ball valve is ideal for high-pressure applications, providing secure and efficient flow control.

Product Information

Standard Information

• MPN: 50M76-14
• Brand: Sharpe Valves

Technical Specifications

• Product Type: Ball Valve
• Valve Body Style: Two-piece
• Material: Stainless Steel
• Material Type: 316 Stainless Steel
• End Connection: Threaded, NPT
• Handle Material: Stainless Steel
• Handle Type: Locking Lever
• Valve Operator: Locking Lever Handle
• Port Type: Full Port
• Pressure: 1000 WOG
• Pressure Class: 1000#
• CWP/WOG Rating: 1000 CWP (psi)
• Valve Size: 1/4 in
• Valve Stem: Blowout-proof
• Valve Seat Material: PTFE
• ASME Compliance: ASME B16.11, ASME B16.34
• ASTM Compliance: ASTM A-351 CF8M
• Length: 3-3/4 in
