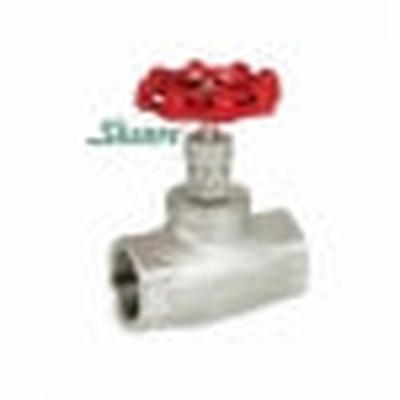

Sharpe 4371006130 Globe Valve 200 lb 1/2 in Nominal

Product Description

The Sharpe Globe Valve, MPN 4371006130, is designed for effective flow control in piping systems. This valve features a one-half inch nominal size and is made of durable 316 stainless steel for long-lasting performance. With a handwheel actuator, it allows for easy manual operation. The valve is suitable for pressures up to 200 pounds and can handle temperatures ranging from zero to three hundred fifty degrees Fahrenheit.

• Body material: 316 stainless steel
• Actuation type: Handwheel
• End style: FNPT

Product Highlights

The valve is ideal for various applications in HVAC, plumbing, and industrial settings. With its threaded bonnet design and non-rising stem, it ensures reliable sealing and ease of installation.

Product Information

Standard Information

• Brand: Sharpe
• Series: 40276

Technical Specifications

• Actuator Type: Handwheel
• Body Material: 316 Stainless Steel
• End Style: FNPT
• Hand Wheel Diameter: 2.73 inches
• Inlet to Outlet Length: 2.64 inches
• Nominal Size: 1/2 inches
• Pressure Class: 200 lb
• Softgoods Material: PTFE Seal
• Temperature Rating: 0 to 350 degrees Fahrenheit
• Top to Inlet Center: 3.55 inches
• Trim Material: 316 Stainless Steel
