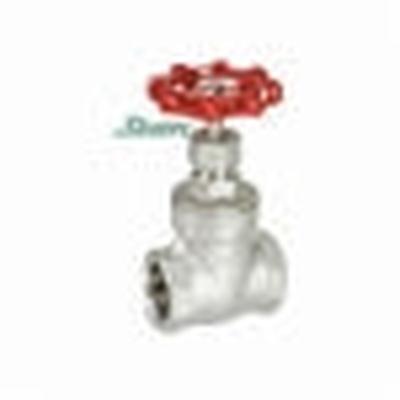

SHARPE 4371003340 Gate Valve 1-1/2 in Nominal FNPT End Style 200 lb

Product Description

The Sharpe gate valve, MPN 4371003340, offers reliable flow control for various applications. This valve features a 1-1/2 inch nominal size and FNPT end style, making it suitable for pipe connections. It operates under a pressure class of 200 lb and a temperature rating from zero to three hundred fifty degrees Fahrenheit.

• 316 stainless steel body and trim for enhanced durability.
• Reduced port design for efficient flow management.
• Handwheel actuator for simple manual operation.

Product Highlights

Ideal for HVAC, plumbing, and industrial applications requiring robust valve solutions.

Product Information

Standard Information

• Brand: Sharpe
• Manufacturer: ASC Engineered Solutions

Technical Specifications

• Actuator Type: Handwheel
• Body Material: 316 Stainless Steel
• End Style: FNPT
• Hand Wheel Diameter: 3.94 inches
• Inlet to Outlet Length: 3.15 inches
• Nominal Size: 1-1/2 inches
• Port Type: Reduced
• Pressure Class: 200 lb
• Series: 30276
• Softgoods Material: PTFE Seal, Packing
• Temperature Rating: 0 to 350 degrees F
• Top to Inlet Center: 7.36 inches
• Trim Material: 316 Stainless Steel
