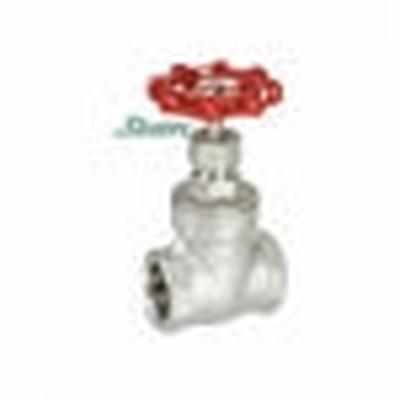

SHARPE 4371003300 Gate Valve 1 in FNPT End Style 200 lb

Product Description

The SHARPE Gate Valve with MPN 4371003300 is designed for efficient flow control. This valve features a nominal size of one inch and a female national pipe thread (FNPT) end style, making it suitable for many plumbing applications.

• Body made from durable 316 stainless steel
• Operated with a handwheel actuator for ease of use
• Temperature rating from zero to three hundred fifty degrees Fahrenheit

Product Highlights

This valve is ideal for both residential and commercial plumbing systems, offering a secure solution for managing water flow.

Product Information

Standard Information

• Brand: SHARPE
• Series: 30276

Technical Specifications

• Actuator Type: Handwheel
• Body Material: 316 Stainless Steel
• End Style: FNPT
• Hand Wheel Diameter: 3.15 inches
• Inlet to Outlet Length: 2.68 inches
• Nominal Size: 1 inch
• Port Type: Reduced
• Pressure Class: 200 lb
• Softgoods Material: PTFE Seal, Packing
• Temperature Rating: 0 to 350 degrees Fahrenheit
• Top to Inlet Center: 5.43 inches
• Trim Material: 316 Stainless Steel
