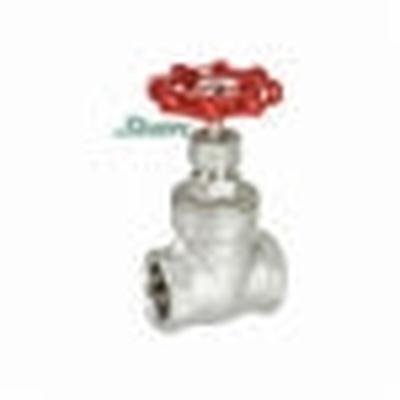

SHARPE 4371003280 Gate Valve 3/4 in Nominal FNPT End Style 200 lb

Product Description

The Sharpe 4371003280 Gate Valve is a reliable option for controlling flow in piping systems. This valve features a 3/4 inch nominal size and FNPT end style, suitable for a variety of applications. It is designed to handle pressures up to 200 lb and operates effectively within a temperature range of zero to three hundred fifty degrees Fahrenheit.

• Handwheel actuator for easy operation
• 316 stainless steel body and trim for durability
• Reduced port design for efficient flow control

Product Highlights

This gate valve is designed for robustness and longevity, making it suitable for industrial applications.

Product Information

Standard Information

• Brand: Sharpe
• Manufacturer: ASC Engineered Solutions

Technical Specifications

• Actuator Type: Handwheel
• Body Material: 316 Stainless Steel
• End Style: FNPT
• Hand Wheel Diameter: 2.76 inches
• Inlet to Outlet Length: 2.36 inches
• Nominal Size: 3/4 inch
• Port Type: Reduced
• Pressure Class: 200 lb
• Series: 30276
• Softgoods Material: PTFE Seal, Packing
• Temperature Rating: 0 to 350 degrees Fahrenheit
• Top to Inlet Center: 5.04 inches
• Trim Material: 316 Stainless Steel
