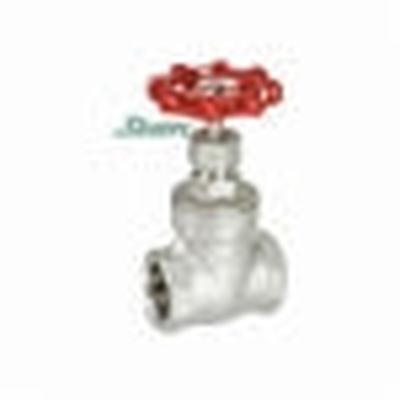

SHARPE 4371003260 Gate Valve 1/2 in Nominal FNPT End Style

Product Description

The Sharpe Gate Valve, MPN 4371003260, is designed for fluid control in piping systems. It features a half-inch nominal size with FNPT end style. This valve operates under a pressure class of 200 pounds and can handle temperatures ranging from zero to three hundred fifty degrees Fahrenheit. The valve has a reduced port and comes with a handwheel actuator, making it user-friendly.

• Threaded bonnet for easy installation
• Solid wedge disc design
• Non-rising stem for efficient operation

Product Highlights

The Sharpe Gate Valve is suitable for various industrial applications. The PTFE seals ensure tight shut-off, while the durable 316 stainless steel body guarantees corrosion resistance.

Product Information

Standard Information

• Brand: Sharpe
• Manufacturer: ASC Engineered Solutions

Technical Specifications

• Actuator Type: Handwheel
• Body Material: 316 Stainless Steel
• End Style: FNPT
• Hand Wheel Diameter: 2.76 inches
• Inlet to Outlet Length: 2.16 inches
• Nominal Size: 1/2 inches
• Port Type: Reduced
• Pressure Class: 200 lb
• Series: 30276
• Softgoods Material: PTFE Seal, Packing
• Temperature Rating: 0 to 350 degrees Fahrenheit
• Top to Inlet Center: 4.76 inches
• Trim Material: 316 Stainless Steel
