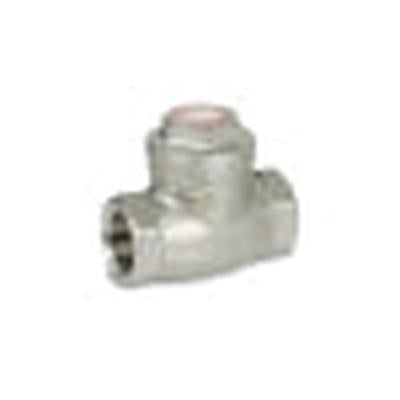

Sharpe 4371000570 SV20276TE020 Swing Check Valve 2 in 200 lb WOG

Product Description

The Sharpe Swing Check Valve with MPN 4371000570 is designed for reliable performance in various piping systems. This valve features a nominal size of two inches and a thread end style. It is constructed from durable 316 stainless steel, ensuring strength and corrosion resistance. The valve is rated for 200 pounds WOG, making it suitable for high-pressure applications.

• Nominal size of two inches for versatile use
• Made of 316 stainless steel for durability
• Rated for 200 lb WOG pressure class

Product Highlights

This swing check valve is ideal for preventing backflow in water and other liquids. Its PTFE seals provide excellent leak prevention, while the 316 stainless steel trim ensures longevity even in challenging environments.

Product Information

Standard Information

• Brand: Sharpe
• Model: 20276

Technical Specifications

• Body Material: 316 Stainless Steel
• End Style: Thread
• Inlet to Outlet Length: 5.42 inches
• Low Lead Compliance: No
• Nominal Size: 2 inches
• Pressure Class: 200 lb WOG
• Series: 20276
• Softgoods Material: PTFE
• Top to Inlet Center: 3.18 inches
• Trim Material: 316 Stainless Steel
