SHARPE 4351008520 SV53036TE020 2 Full Port (FNPT) 316 Stainless Steel

Product Description

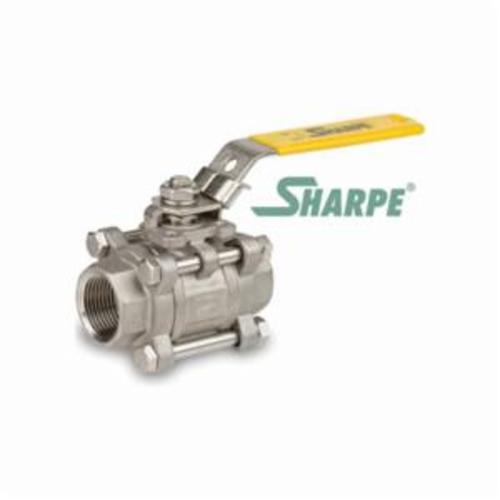

Sharpe ball valve model 4351008520 is a three-piece, full port valve designed for reliable flow control. It features a nominal size of two inches with FNPT end connections and a robust body made of 316 stainless steel. This valve operates with a lever mechanism for easy actuation.

• Full port design for maximum flow
• Temperature range from zero to four hundred fifty degrees Fahrenheit
• Pressure rating of one thousand psi

Product Highlights

This valve is suitable for various industrial applications such as HVAC, plumbing, and fluid transfer. It ensures durability and performance under demanding conditions.

Product Information

Standard Information

• Brand: Sharpe
• Manufacturer: ASC Engineered Solutions

Technical Specifications

• Actuator Type: Lever Operated
• Body Material: 316 Stainless Steel
• End Style: FNPT
• Inlet to Outlet Length: 5.58 inches
• Nominal Size: 2 inches
• Orifice Size: 2 inches
• Port Type: Full
• Pressure Rating: 1000 psi
• Series: 53036
• Softgoods Material: PTFE
• Temperature Rating: 0 to 450 degrees Fahrenheit
• Top to Inlet Center: 3.82 inches
• Trim Material: 316 Stainless Steel Stem and RTFE Seat
• Type: 3-Piece
