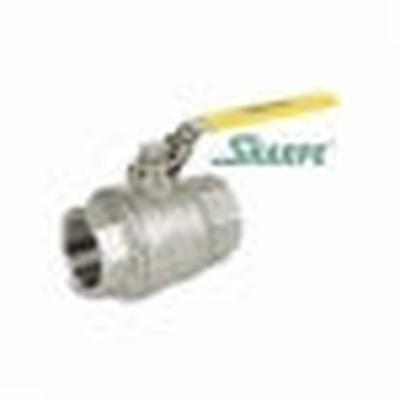

Sharpe 4351006020 SV50M76030 50M76 3 in Full Port FNPT Valve

Product Description

The Sharpe 4351006020 is a two-piece ball valve from the 50M76 series. It is designed for use in various piping systems requiring a reliable shut-off mechanism. This valve has a nominal size of three inches and features a full port for maximum flow efficiency.

• Full port design for minimal flow resistance
• Constructed from durable 316 stainless steel
• Lever-operated for easy use

Product Highlights

This valve is ideal for applications that demand high performance and durability.

Product Information

Standard Information

• Brand: Sharpe
• Manufacturer: ASC Engineered Solutions

Technical Specifications

• Actuator Type: Lever Operated
• Ball Material: 316 Stainless Steel
• Body Material: 316 Stainless Steel
• End Style: FNPT
• Inlet to Outlet Length: 7.55 inches
• Nominal Size: 3 inches
• Orifice Size: 3 inches
• Port Type: Full
• Pressure Rating: 1000 psi
• Temperature Rating: 0 to 450 degrees F
• Top to Inlet Center: 5.4 inches
• Trim Material: 316 Stainless Steel Stem and RTFE Seat
• Softgoods Material: RTFE/PTFE
• Type: 2-Piece
