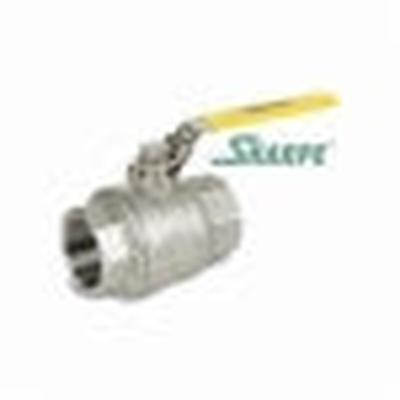

Sharpe 4351005980 Ball Valve 1000 psi 2 in Nominal FNPT

Product Description

The Sharpe 4351005980 is a two-piece ball valve designed for demanding applications. This valve features a full port design that maximizes flow capacity. It is suitable for use in various industrial processes where tight sealing and durability are essential.

• Max pressure rating of 1000 psi
• Temperature range from zero to four hundred fifty degrees Fahrenheit
• Lever-operated actuator for ease of use

Product Highlights

The Sharpe ball valve is made with a 316 stainless steel body and features RTFE/PTFE seat trim for optimal performance.

Product Information

Standard Information

• Brand: Sharpe
• Manufacturer: ASC Engineered Solutions

Technical Specifications

• Actuator Type: Lever Operated
• Ball Material: 316 Stainless Steel
• Body Material: 316 Stainless Steel
• End Style: FNPT
• Inlet to Outlet Length: 5.27 inches
• Nominal Size: 2 inches
• Orifice Size: 2 inches
• Port Type: Full
• Pressure Rating: 1000 psi
• Series: 50M76
• Softgoods Material: RTFE/PTFE
• Temperature Rating: 0 to 450 degrees Fahrenheit
• Top to Inlet Center: 3-1/4 inches
• Trim Material: 316 Stainless Steel Stem and RTFE
• Type: 2-Piece
