Sharpe 4351005940 Ball Valve 1-1/4 in FNPT Full Port

Product Description

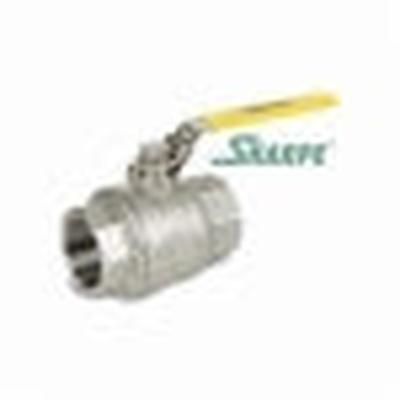

The Sharpe ball valve with MPN 4351005940 features a two-piece design. It has a nominal size of one and one-fourth inches with FNPT end style. This valve is suited for various applications.

• Blow-out proof stem
• Locking lever handle
• RTFE and PTFE soft goods

Product Highlights

The Sharpe ball valve is designed for reliable performance in high-pressure settings. The body and stem are made of 316 stainless steel, offering durability and resistance to corrosion.

Product Information

Standard Information

• Nominal Size: 1-1/4 inches
• End Style: FNPT

Technical Specifications

• Actuator Type: Lever Operated
• Ball Material: 316 Stainless Steel
• Body Material: 316 Stainless Steel
• Inlet to Outlet Length: 3.8 inches
• Orifice Size: 1-1/4 inches
• Port Type: Full
• Pressure Rating: 1000 psi
• Temperature Rating: 0 to 450 degrees F
• Top to Inlet Center: 2.56 inches
• Trim Material: 316 Stainless Steel Stem and RTFE Seat
