SHARPE 4351005920 SV50M76010 50M76 2-Piece Ball Valve Power 1 in Replacement MPN

Product Description

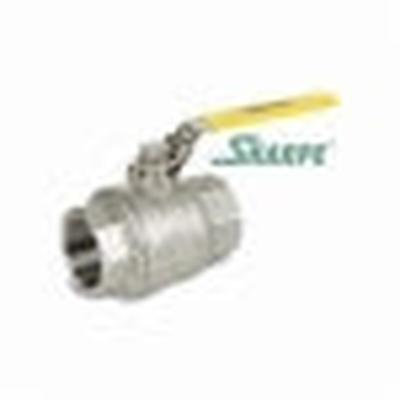

The Sharpe 2-Piece Ball Valve, MPN 4351005920, is designed for various piping applications. This valve features full port flow and is made from 316 stainless steel for durability and resistance to corrosion.

• Nominal size of one inch FNPT
• Pressure rating of one thousand psi
• Temperature range from zero to four hundred fifty degrees Fahrenheit

Product Highlights

This ball valve uses RTFE/PTFE softgoods and includes a blow-out proof stem for added safety.

Product Information

Standard Information

• Actuator Type: Lever Operated
• Material: 316 Stainless Steel

Technical Specifications

• End Style: FNPT
• Inlet to Outlet Length: 3.25 inches
• Nominal Size: 1 inch
• Orifice Size: 1 inch
• Port Type: Full
• Pressure Rating: 1000 psi
• Series: 50M76
• Temperature Rating: 0 to 450 degrees Fahrenheit
• Top to Inlet Center: 2.44 inches
• Trim Material: 316 Stainless Steel Stem and RTFE Seat
