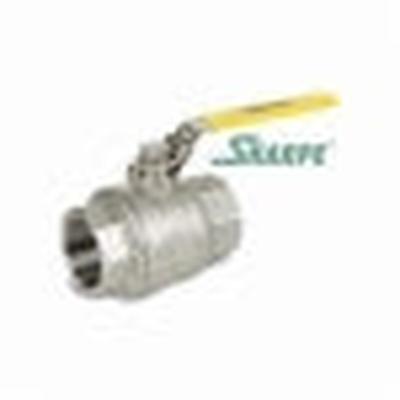

Sharpe 4351005900 SV50M76006 50M76 3/4 in Nominal Full Port

Product Description

The Sharpe 50M76 2-Piece Ball Valve with MPN 4351005900 is designed for reliable liquid and gas flow control. This valve is made from durable 316 stainless steel and features a full port design for optimal performance.

• Full port for minimal flow resistance
• Lever operated actuator for easy control
• High pressure rating up to 1000 psi

Product Highlights

This ball valve offers a robust construction and excellent sealing capabilities, making it suitable for various applications in HVAC, plumbing, and industrial systems.

Product Information

Standard Information

• Brand: Sharpe
• Manufacturer: ASC Engineered Solutions

Technical Specifications

• Actuator Type: Lever Operated
• Ball Material: 316 Stainless Steel
• Body Material: 316 Stainless Steel
• End Style: FNPT
• Inlet to Outlet Length: 2-3/4 inches
• Nominal Size: 3/4 inches
• Orifice Size: 0.8 inches
• Port Type: Full
• Pressure Rating: 1000 psi
• Series: 50M76
• Softgoods Material: RTFE/PTFE
• Temperature Rating: 0 to 450 degrees F
• Top to Inlet Center: 2.04 inches
• Trim Material: 316 Stainless Steel Stem and RTFE Seat
• Type: 2-Piece
