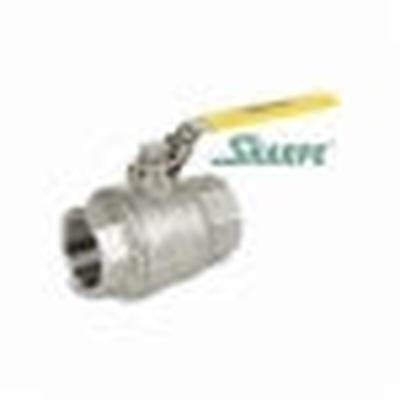

Sharpe 4351005880 SV50M76004 Ball Valve 1/2 In Nominal FNPT 316 Stainless Steel

Product Description

The Sharpe 4351005880 SV50M76004 is a 2-piece ball valve designed for reliable performance. This ball valve has a nominal size of one half inch and features FNPT end style. The body and stem are made of 316 stainless steel, providing strength and corrosion resistance.

• Full port design to ensure maximum flow.
• Rated for a pressure of 1000 psi.
• Temperature range from zero to four hundred fifty degrees Fahrenheit.

Product Highlights

This ball valve is operated by a lever actuator, featuring blow-out proof stem and locking lever handle. It includes RTFE/PFTE soft goods for effective sealing.

Product Information

Standard Information

• Brand: Sharpe
• Manufacturer: ASC Engineered Solutions

Technical Specifications

• Actuator Type: Lever Operated
• Ball Material: 316 Stainless Steel
• Body Material: 316 Stainless Steel
• End Style: FNPT
• Inlet to Outlet Length: 2.36 inches
• Nominal Size: 1/2 inches
• Orifice Size: 0.59 inches
• Port Type: Full
• Pressure Rating: 1000 psi
• Series: 50M76
• Softgoods Material: RTFE/PTFE
• Temperature Rating: 0 to 450 degrees Fahrenheit
• Top to Inlet Center: 1.89 inches
• Trim Material: 316 Stainless Steel Stem and RTFE
• Seat Type: 2-Piece
