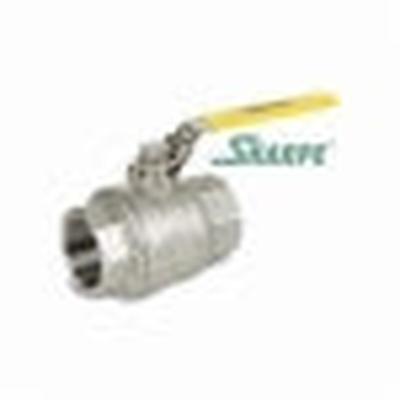

SHARPE 4351005860 50M76 2-Piece Ball Valve 3/8 in

Product Description

SHARPE 4351005860 is a 2-piece ball valve designed for fluid control in a variety of applications. The valve features a nominal size of three-eighths inches with a full port design that provides unrestricted flow. Made with a durable 316 stainless steel body, this valve is built to withstand high pressures and temperatures.

• Operating pressure of up to 1000 psi
• Temperature rating from zero to four hundred fifty degrees Fahrenheit
• Lever operated actuator for easy operation

Product Highlights

This ball valve is ideal for plumbing, heating, and industrial applications.

Product Information

Standard Information

• Brand: SHARPE
• MPN: 4351005860

Technical Specifications

• Actuator Type: Lever Operated
• Ball Material: 316 Stainless Steel
• Body Material: 316 Stainless Steel
• End Style: FNPT
• Inlet to Outlet Length: 2 inches
• Nominal Size: 3/8 inches
• Orifice Size: 1/2 inches
• Port Type: Full
• Pressure Rating: 1000 psi
• Softgoods Material: RTFE/PTFE
• Temperature Rating: 0 to 450 degrees Fahrenheit
• Top to Inlet Center: 1.81 inches
• Trim Material: 316 Stainless Steel Stem and RTFE Seat
• Type: 2-Piece
