Sharpe 4351005840 SV50M76002 50M76 1/4 in Nominal FNPT End Style Replacement MPN

Product Description

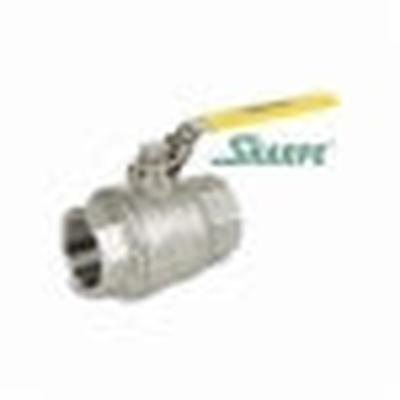

The Sharpe 4351005840 SV50M76002 is a two-piece ball valve designed for various applications. This valve has a nominal size of one-quarter inch and features a full port for maximum flow capacity. It is built with a durable 316 stainless steel body and stem, ensuring reliability and longevity in service.

• Blow-out proof stem
• Locking lever handle for secure operation
• RTFE stem packing and PTFE seal

Product Highlights

This valve is suitable for temperatures from zero to four hundred fifty degrees Fahrenheit and has a pressure rating of one thousand psi, making it ideal for a range of plumbing projects.

Product Information

Standard Information

• Brand: Sharpe
• Manufacturer: ASC Engineered Solutions

Technical Specifications

• Actuator Type: Lever Operated
• Ball Material: 316 Stainless Steel
• Body Material: 316 Stainless Steel
• End Style: FNPT
• Inlet to Outlet Length: 2-3/4 in
• Nominal Size: 1/4 in
• Orifice Size: 0.8 in
• Port Type: Full
• Pressure Rating: 1000 psi
• Series: 50M76
• Softgoods Material: RTFE/PTFE
• Temperature Rating: 0 to 450 deg F
• Top to Inlet Center: 2.04 in
• Trim Material: 316 Stainless Steel Stem and RTFE Seat
• Type: 2-Piece
