Product Description

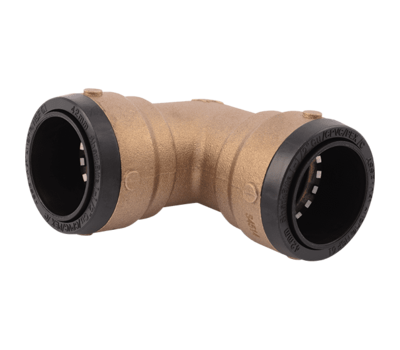

The SharkBite UXL0241 is a durable brass elbow designed for easy push-to-connect applications in plumbing systems. Constructively made from DZR brass, it ensures reliable performance under pressure up to 200 psi and temperatures up to 200 degrees Fahrenheit. Its compatibility with PEX, copper, CPVC, and PE-RT pipe types simplifies installations without the need for soldering, crimping, or glue.
- Efficient for underground and behind-the-wall installations.
- Remove using a disconnect clip or tongs, sold separately.
- Complies with multiple standards including ASSE 1061 and ASTM E119.
Product Highlights
Designed for both commercial and residential use, this elbow features a large diameter suitable for various pipe sizes. Its push-to-connect design promotes quick setup and disassembly, enhancing workflow efficiency on job sites.
Technical Specifications
-
Type: 90 degree elbow
- Material:
-
Connection Size: 1-1/2 in
-
Pressure Rating: 200 psi
-
Temperature Rating: 200 degrees Fahrenheit
-
Compliance: ANSI/NSF 14 and 61, ASSE 1061
