Sharkbite urss3088fx24 Water Heater Connector 24 in

Product Description

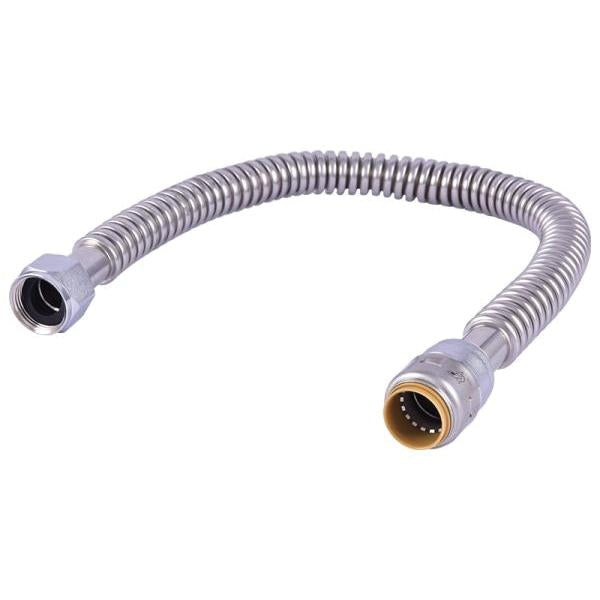

The SHARKBITE urss3088fx24 is a flexible corrugated water heater connector designed for residential water heater installations where pipe alignment is difficult or working space is limited. Built from brass and stainless steel, this lead-free connector combines a Push-to-Connect inlet with a 3/4-inch Female Iron Pipe (FIP) outlet, allowing a plumber to make a secure connection without soldering or additional fittings. At 24 inches in length and rated to 200 psi and 180 degrees F, it handles the demands of standard tank-style water heater supply lines. The flexible stainless steel corrugated body accommodates minor offsets between the water heater inlet and the existing supply pipe.

This connector is suited for both electric and gas water heaters, including gas units equipped with a flue vent. It is intended for licensed plumbers and experienced tradespeople performing water heater replacements or new installations in residential settings. The Push-to-Connect end eliminates the need for soldering at the connection point, reducing install time and the number of joints in the line. It is particularly useful in utility closets, alcoves, and other confined spaces where rigid connectors or standard flex lines cannot be easily maneuvered.

Key Features

• Push-to-Connect x FIP connection eliminates soldering at the heater supply inlet
• Corrugated stainless steel body flexes to accommodate pipe misalignment
• Rated to 200 psi and 180 degrees F for water heater supply service
• Lead-free brass and stainless steel construction meets NSF and ANSI requirements
• Approved for use on both electric and gas water heaters with flue vents
• 24-inch length provides flexibility in tight mechanical spaces

Compatibility

Approved for use with electric and gas water heaters equipped with a flue vent. Connection size is 3/4 x 3/4 inches with Push-to-Connect x FIP ends, suitable for standard residential water heater supply connections.

Installation Notes

Installation should be performed by a licensed plumber in accordance with local plumbing codes and IFGC requirements where applicable. Shut off the water supply and allow the water heater to cool before disconnecting existing lines. Ensure the Push-to-Connect end is inserted fully into the pipe until it seats against the internal stop. Do not bend the connector at sharp angles or kink the corrugated body during installation.

Technical Specifications

• Connection Size: 3/4 x 3/4 inches
• Connection Type: Push-to-Connect x FIP
• Length: 24 inches
• Pressure Rating: 200 psi
• Temperature Rating: 180 degrees F
• Material: Brass/Stainless Steel
• Lead-Free: Yes
• Standards: ASME A112.18.6, ASME A112.4.14, ANSI 14, CAN 61, CAN 372
• Suitable For Use With: Water Heater

Standard Information

• Brand: SHARKBITE
• Manufacturer Part Number: urss3088fx24
