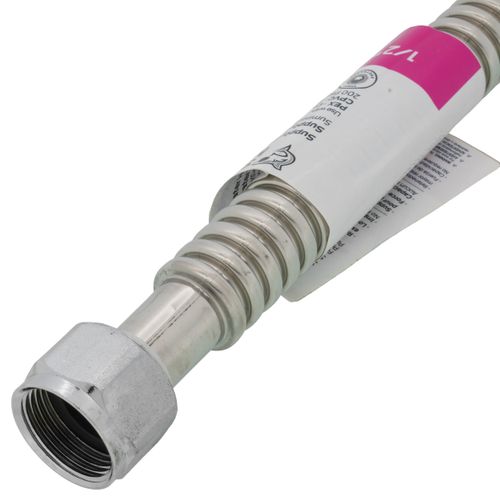

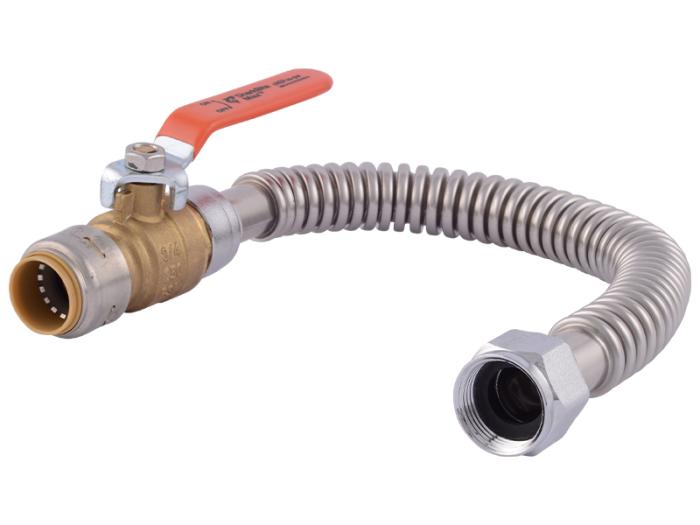

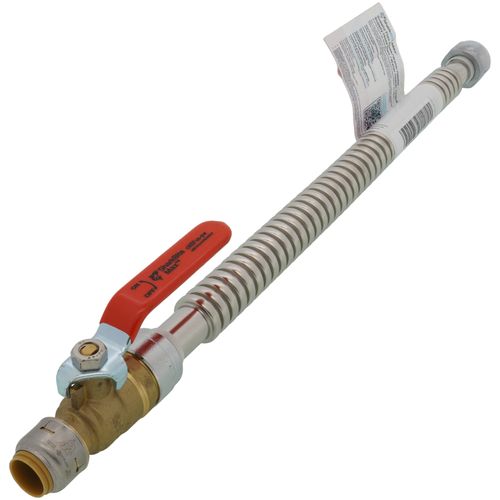

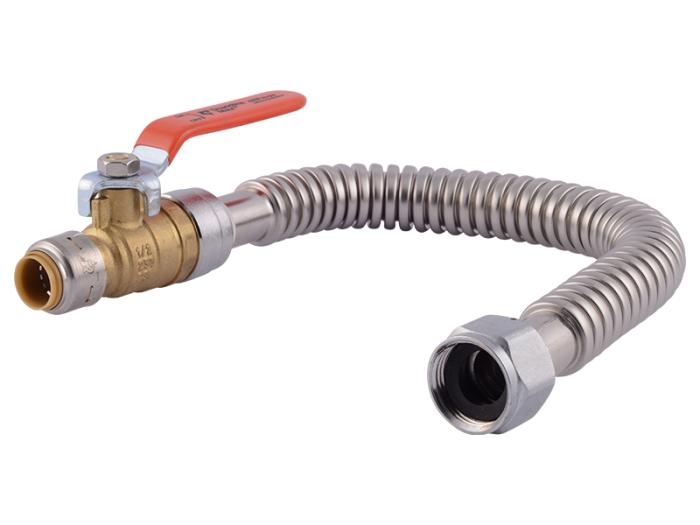

Sharkbite URSS3068FX18BV Max 1/2 inches x 3/4 inches FIP, 18 inches Stainless Steel Corrugated Water Heater Connector with Ball Valve

Product Description

The SHARKBITE URSS3068FX18BV Max stainless-steel corrugated flexible water heater connector with ball valve allows connection of water heaters with existing pipes in tight spaces. The integrated ball valve allows the water heater supply to be shut off. Approved for use on electric or gas water heaters with a flue vent. Innovative design reduces the need for extra joints or fittings.

• Fastest way to install a water heater with PEX, copper, CPVC, PE-RT or HDPE SDR-9 pipe.
• Can be installed on wet lines and pressure tested immediately.

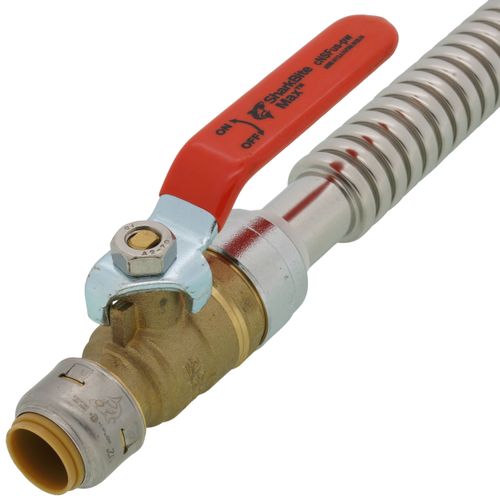

• Integrated ball valve for easy shut-off

Product Highlights

This SharkBite Max water heater connector is made of stainless steel and features a push-fit x FIP connection for plumbing applications. It is compatible with PEX, copper, and CPVC tubing.

Product Information

Standard Information

• Brand: SHARKBITE
• Manufacturer Part Number: URSS3068FX18BV
• Country of Origin: China

Technical Specifications

• Length: 18"
• Connection Type: Push-Fit x FIP
• Application: Plumbing
• Size: 1/2" x 3/4"
• Type: Corrugated
• Material: Stainless Steel
• Thread Type: Female
• Standards Met: NSF
• Fitting System Compatibility: Push Fit
• Tubing Compatibility: PEX, Copper, CPVC
• Lead Free: Yes
• Insertion Depth: 15/16"
• Brand: SharkBite
• Maximum Pressure: 200 Pound per Square Inch
• Outside Diameter: 0.75 Inches
• Item Length: 18 Inches
• SKU: URSS3068FX18BV
• Pipe Size: 1/2 in. x 3/4 in. FIP
• Approvals & Listings: ASME A112.18.6/CSA B125.6 ASME A112.4.14/CSA B125.14 - ball valve NSF/ANSI 14 NSF/ANSI/CAN 61 NSF/ANSI/CAN 372
• MPN: URSS3068FX18BV
• Features: Rotatable After Installation & Removable, Integrated Ball Valve For Easy Shut-Off, No Tube Liner Required For PEX, Can Be Installed On Wet Lines and Pressure Tested Immediately
• Maximum Temperature: 180°F
