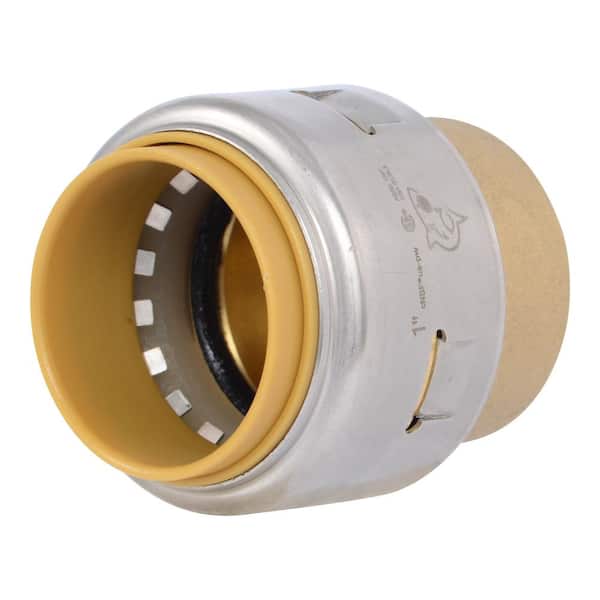

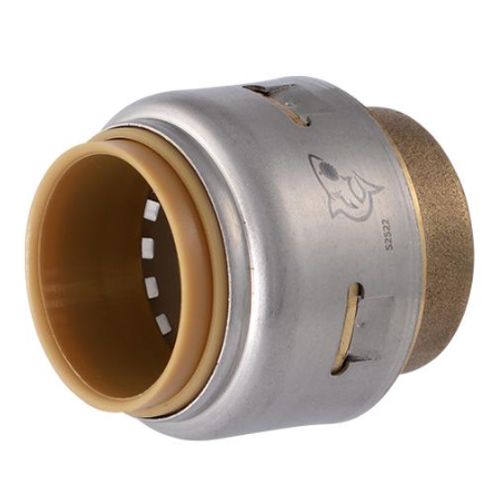

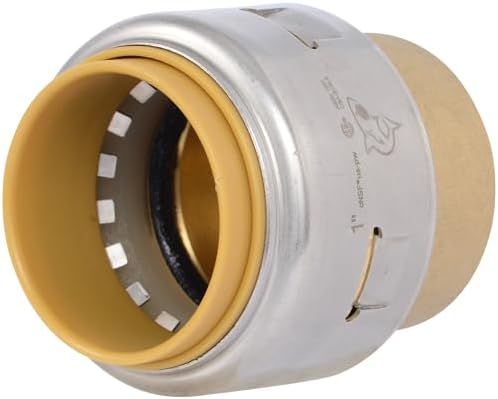

Sharkbite UR520 Max End Stop 1 in Replacement UR520A

Product Description

The SHARKBITE UR520 Max End Stop is designed to plug the end of PEX, copper, CPVC and PE-RT pipe. Its innovative push-to-connect design allows for quick and easy installation and removal, making it ideal for tight spaces and reducing installation errors.

• Fastest way to connect PEX, copper, CPVC, PE-RT or HDPE SDR-9 pipe.
• Half the insertion force compared to SharkBite 1st Generation fittings.
• Can be installed on wet lines and pressure tested immediately.

Product Highlights

This lead-free brass end stop requires no special tools, crimping, soldering, or glue. It is rated to 200°F and 400 psi.

Product Information

Standard Information

• Brand: SHARKBITE
• Manufacturer Part Number: UR520
• Country of Origin: US

Technical Specifications

• Insertion Depth: 1-1/2"
• Size: 1"
• PEX Size: 1"
• Lead Free: Yes
• Connector Type: Cap
• Material: Copper
• Exterior Finish: Brass
• Single Fitting Size: 1"
• Pack Size: 1
• Brand: SHARKBITE
• MFR Part No: UR520
• Nominal Size: 1 in
• Standard Approvals: ASSE 1061, CSA B125.3, NSF/ANSI 14, NSF/ANSI/CAN 61, NSF/ANSI/CAN 372, ASTM E84, CAN/ULC S102.2, UL 263, ASTM E119, CAN/ULC S101
• Series: MAX
• Fitting Shape: Cap
• Fitting Material: 304 Brass; 316 Brass
• Compatible Copper Tube Type: Type K; Type L; Type M
• System of Measurement: Imperial
• Temperature Range: 32 0F to 200 0F
• Maximum Operating Pressure: 400 psi
• Compatible Tube Material: Copper; CPVC; HDPE; PEX
• Fitting Side A Connection Type: Push-to-Connect
• Fitting Side A Copper Tube Size: 1 in
• Overall Length: 1-13/16 in
• Application: Fluid Transfer
• Standards: ASSE 1061; ASTM E119; ASTM E84; CAN/ULC S101; CAN/ULC S102.2; CSA B125.3; NSF/ANSI 14; NSF/ANSI/CAN 372; NSF/ANSI/CAN 61; UL 263
• Country of Origin: Vietnam (subject to change)
