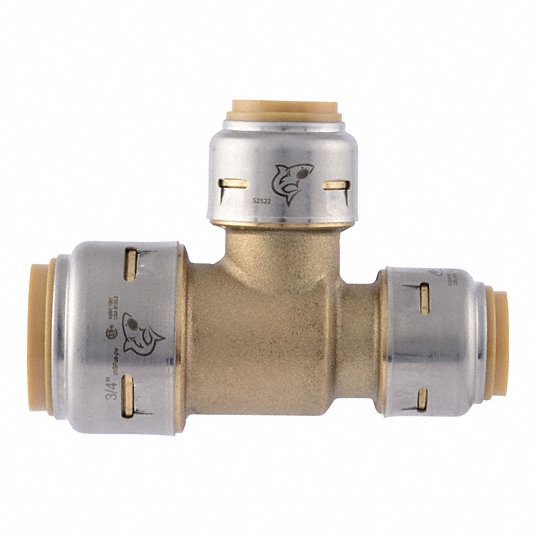

Sharkbite UR454 MAX Push-Fit Tee Fitting 3/4 in OD x 1/2 in OD x 1/2 in OD

Product Description

The SHARKBITE UR454 MAX push-fit tee fitting is made of brass and designed for connecting PEX, copper, CPVC, PE-RT, or HDPE SDR-9 tubing. Suitable for potable water or radiant heating systems, this fitting features a push-to-connect design for easy installation. It withstands high pressure and temperature, and can be rotated after installation.

• Push-to-connect design is quick and easy to install in tight spaces
• DZR brass body prevents corrosion and cracking
• 316 stainless steel grab ring features stainless steel teeth for a leak-free connection

Product Highlights

This tee fitting is easy to install and corrosion resistant. Ideal for use in commercial and residential plumbing.

Product Information

Standard Information

• Brand: SHARKBITE
• Manufacturer Part Number: UR454
• Country of Origin: Australia

Technical Specifications

• Brand: SHARKBITE
• Series: SharkBite Max
• Fitting Shape: Tee with Swivel (Run x Run x Branch)
• Fitting Material: Brass
• System of Measurement: Imperial
• Finish: Brass
• Temperature Range: 33 °F to 200 °F
• Maximum Operating Pressure: 400 psi
• Fitting Side A Connection Type: Push-to-Connect
• Fitting Side A Tube Outer Diameter: 3/4 in
• Fitting Side B Connection Type: Push-to-Connect
• Fitting Side B Tube Outer Diameter: 1/2 in
• Fitting Side C Connection Type: Push-to-Connect
• Fitting Side C Tube Outer Diameter: 1/2 in
• Overall Length: 9 in
• Features: Corrosion-Resistant, Crack-Resistant, EDPM O-Ring
• Pipe Size: 1/2 - 3/4 Inch
• Type: Tees
