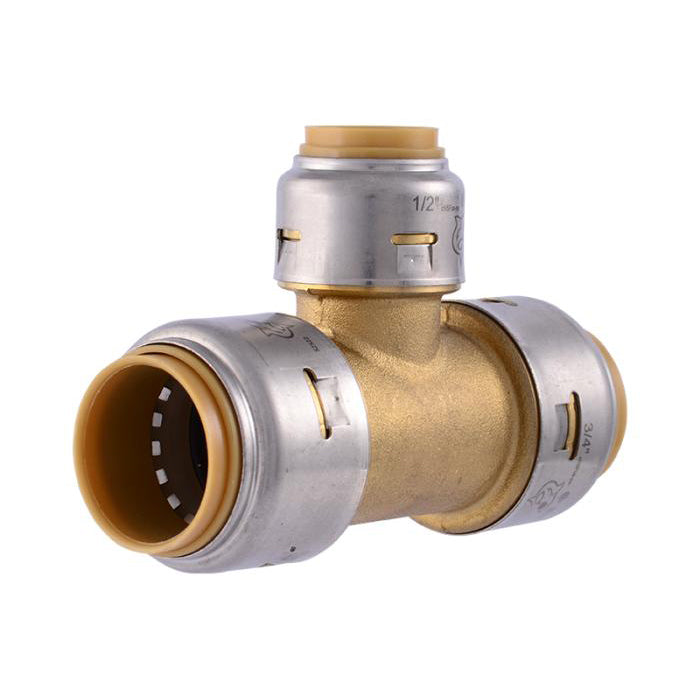

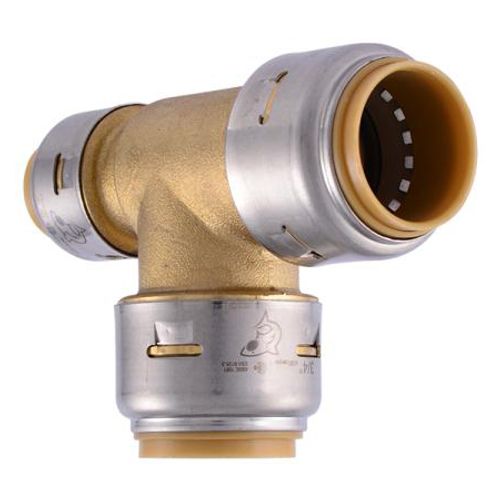

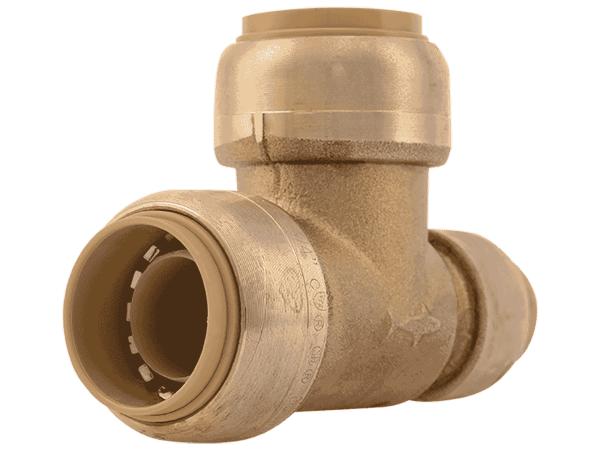

Sharkbite UR444 Max Reducing Tee 3/4 inches x 1/2 inches x 3/4 inches

Product Description

The Sharkbite UR444 Max Reducing Tee is designed for simplifying pipe installation with its instant push-fit connection, eliminating the need for soldering. Certified to 200 PSI and 200 degrees F, it fits OD controlled copper, CPVC, or PEX pipe. Its compact, corrosion-resistant DZR brass body is design certified to ANSI/NSF-61 for potable water systems and IGC 188 for hydronic heating.

• 3/4" x 1/2" x 3/4" size
• Made of brass
• Compatible with CPVC, OD Controlled Copper, and PEX

Product Highlights

This lead-free reducing tee features a push-fit system, is certified for underground use, and meets NSF 372 and NSF 61 standards.

Product Information

Standard Information

• Brand: Sharkbite
• Manufacturer Part Number: UR444
• Country of Origin: US

Technical Specifications

• Size: 3/4" x 1/2" x 3/4"
• Lead Free: Yes
• Material: Brass
• PEX Size: 3/4", 1/2"
• Insertion Depth: 15/16", 1-1/8"
• Application: Heating
• Max Pressure (PSI): 200
• Fitting System Compatibility: Push Fit
• Tubing Compatibility: CPVC, OD Controlled Copper, PEX
• Standards Met: NSF 372, NSF 61
• Max Temp (F): 200°F
• Type: Push Reducing Tee
• Width: 3 1/2 Inches
• Height: 2 1/2 Inches
• Features: Corrosion-Resistant, Crack-Resistant, EDPM O-Ring
• Maximum Pressure: 400 PSI
• Maximum Water Temperature: 200 Degrees F
• Pipe Size: 1/2 - 3/4 Inch
• Fitting Size: 3/4" X 1/2" X 3/4"
• Fitting Type: Tee
• Manufacturer Name: Sharkbite
• Length: 3.50 Inches
