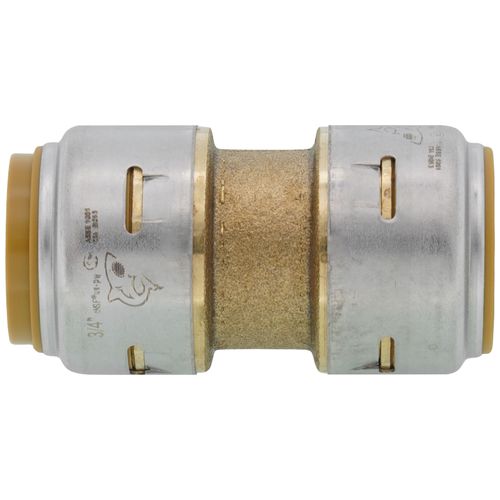

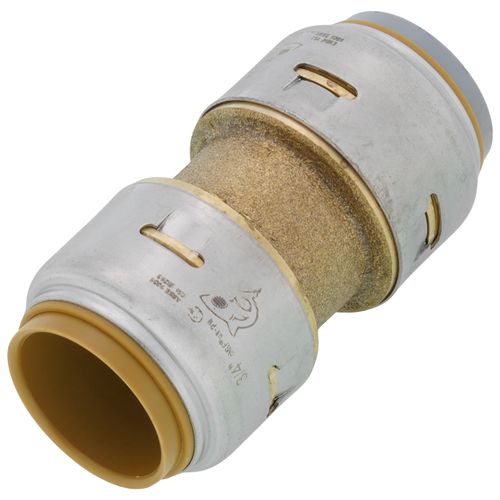

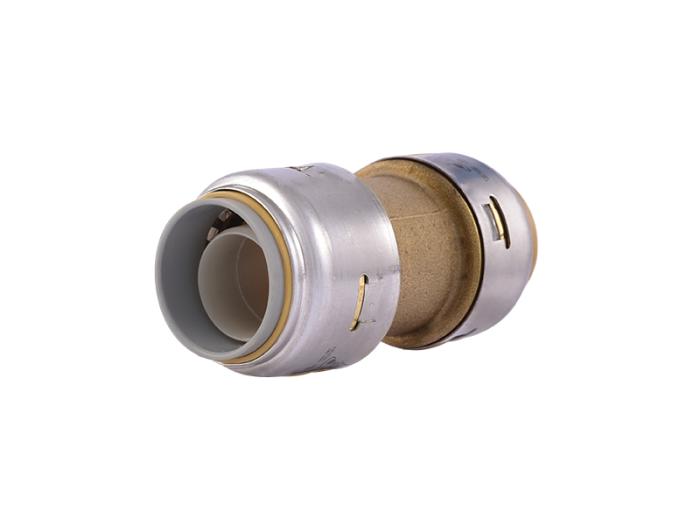

Sharkbite UR4016 3/4 inches Pb x 3/4 inches Cts Max Transition Coupling

Product Description

The SHARKBITE UR4016 is designed to simplify pipe installation with an instant push-fit connection, increasing ease of use, as no soldering is required. These fittings are certified to 200 PSI and 200 degrees F (93 degrees C). It fits OD controlled copper, CPVC, or PEX pipe. Design certified and agency listed.

• Brass
• CPVC, OD Controlled Copper, PEX
• Push Fit

Product Highlights

This transition coupling features a compact, corrosion resistant, robust DZR brass body. The gray-colored collar is intended for use on Polybutylene pipe while the tan-colored collar is intended for OD controlled copper, CPVC, or PEX pipe.

Product Information

Standard Information

• Brand: SHARKBITE
• Manufacturer Part Number: UR4016
• Country of Origin: USA

Technical Specifications

• Application: Plumbing, Heating
• Size: 3/4"
• PEX Size: 3/4"
• Material: Brass
• Fitting System Compatibility: Push Fit
• Tubing Compatibility: CPVC, OD Controlled Copper, PEX
• Standards Met: NSF
• Max Temp (F): 200
• Lead Free: Yes
• Insertion Depth: 1-1/8"
• Connector Type: Coupling
• Exterior Finish: Brass
• Material Type: Brass
• Pipe Size: 3/4 in. PB x 3/4 in. CTS
• Common Applications: Behind-the-wall with no access panels, Underground when wrapped in silicone tape, Polybutylene repipe, Replacing polybutylene with PEX, Polybutylene plumbing repair, Polybutylene pipe leaks
• Approvals & Listings: Third-party listed, compliant with applicable U.S. and Canadian plumbing codes, ASSE 1061, CSA B125.3, NSF/ANSI 14, NSF/ANSI/CAN 61, NSF/ANSI/CAN 372, ASTM E84, CAN/ULC S102.2, UL 263, ASTM E119, CAN/ULC S101
• Connection Size 1: 3/4 in
• Connection Size 2: 3/4 in
• Connection Type 1: Push-to-Connect
• Connection Type 2: CTS
• Connection Type: Push-Fit|CTS
• Fitting Type: Adapter
• Material Construction: DZR Lead-Free Brass
• Pressure Rating: 400 psi
• Temperature Rating: 200 deg F
