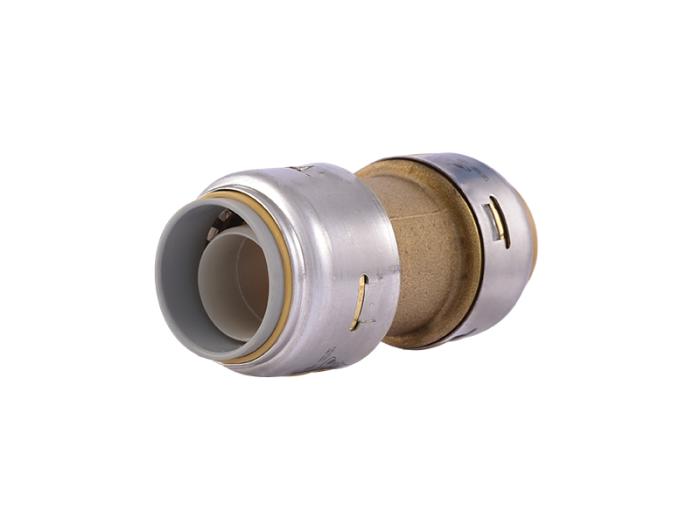

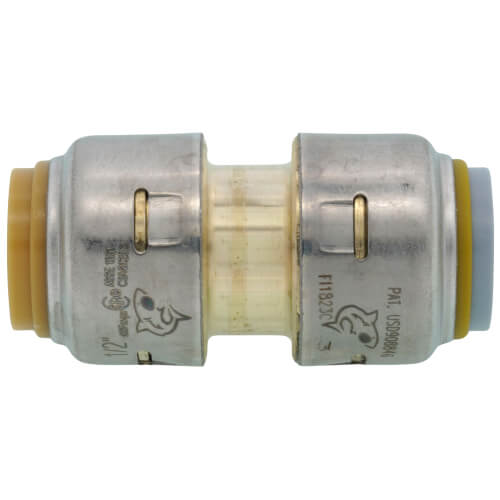

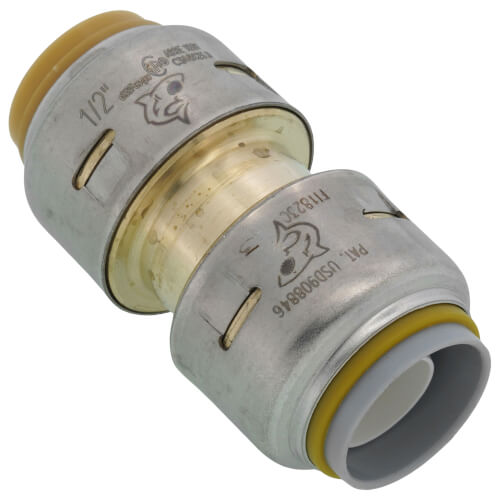

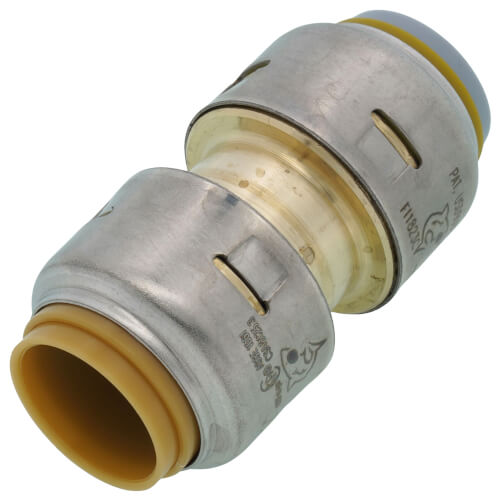

Sharkbite UR4008 Max Polybutylene Conversion Coupling 1/2 inches x 1/2 inches Lead Free

Product Description

The Sharkbite UR4008 max polybutylene conversion coupling is designed to connect polybutylene pipe to PEX, copper, CPVC, PE-RT, or SDR-9 HDPE pipe. This coupling does not require special tools and features a push-to-connect design.

• Push-to-connect installation for ease and speed.
• Compatible with various pipe types including PEX and copper.
• Constructed from lead-free DZR brass for safety and durability.

Product Highlights

This coupling is suitable for heating and plumbing applications where a transition from polybutylene to other pipe materials is required.

Product Information

Standard Information

• Application: Heating, Plumbing
• Size: 1/2 inches

Technical Specifications

• PEX Size: 1/2 inches
• Material: Brass
• Fitting System Compatibility: Push Fit
• Tubing Compatibility: PEX, CPVC, OD Controlled Copper
• Standards Met: NSF
• Max Temp (F): 200 degrees F
• Max Pressure (PSI): 200
• Warranty: 25 Year
• Lead Free: Yes
• Insertion Depth: 15/16 inches
• Pipe Size: 1/2 in. PB x 1/2 in. CTS
• Common Applications: Behind-the-wall with no access panels, Underground with silicone tape, Polybutylene repipe, Replacing polybutylene with PEX
• Approvals & Listings: Compliant with applicable U.S. and Canadian plumbing codes
• Diameter (End 1): 1/2 in
• Package Quantity: 1
• Connection Size 1: 1/2 in
• Connection Size 2: 1/2 in
• Connection Type 1: Push-to-Connect
• Connection Type 2: CTS
• Material Construction: DZR Brass
• Pressure Rating: 250 psi
• Temperature Rating: 200 degrees F
• Additional Information: Lead-Free
