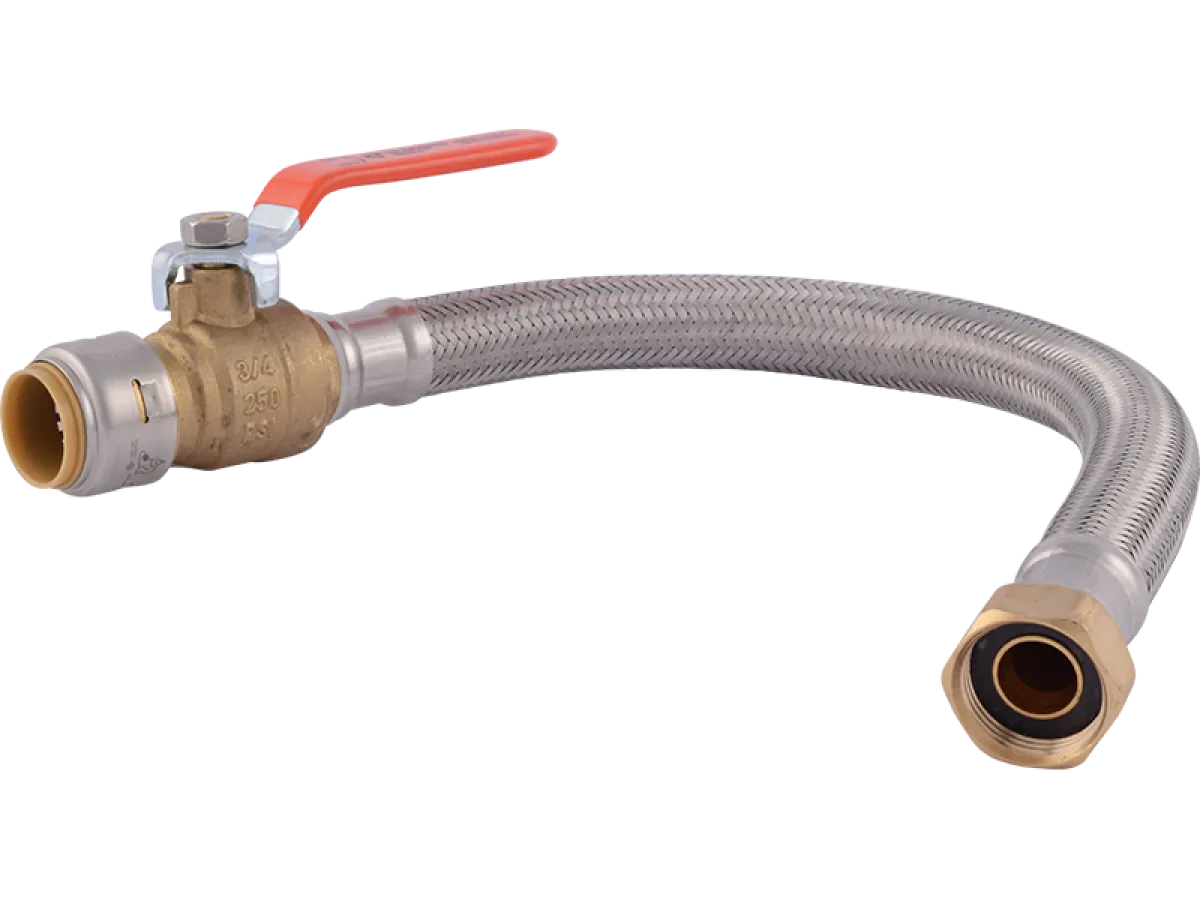

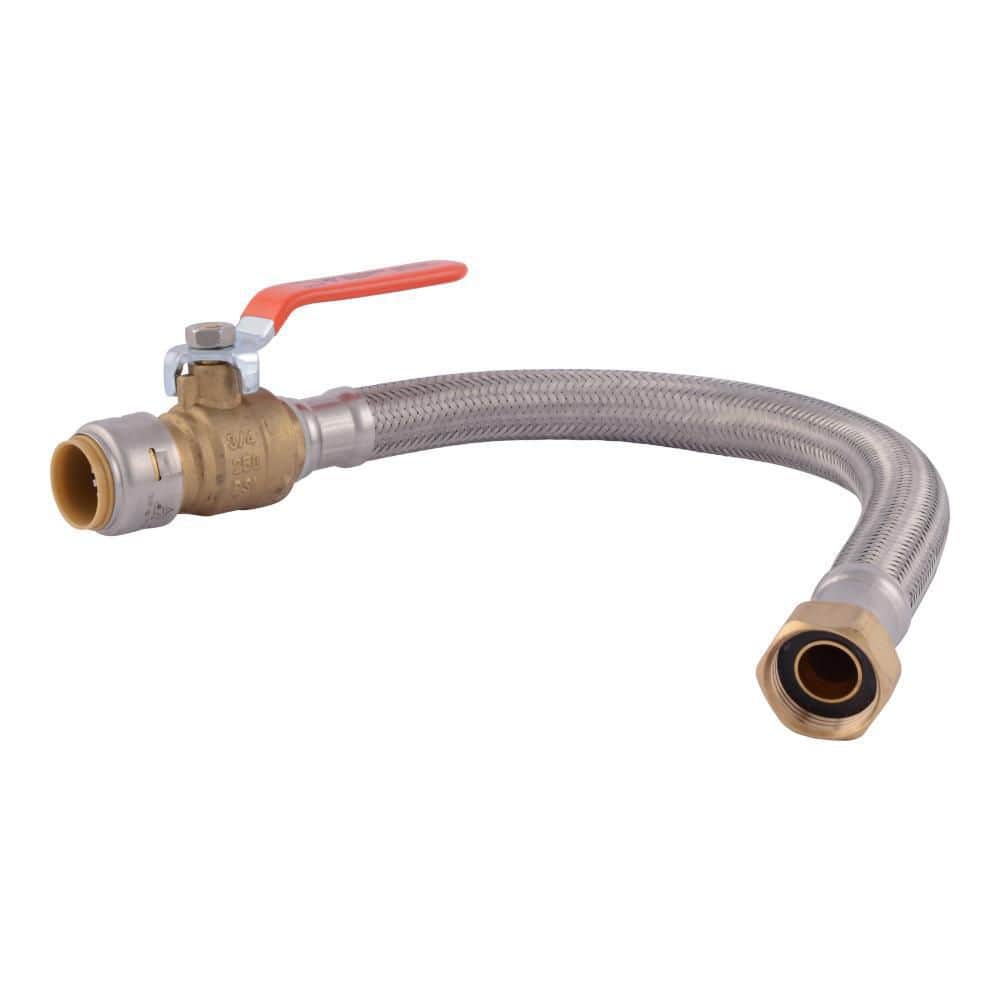

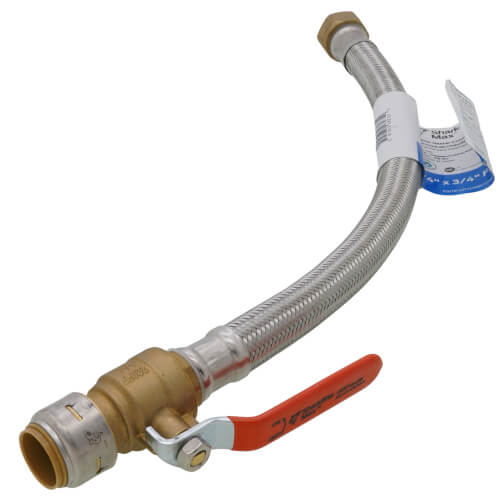

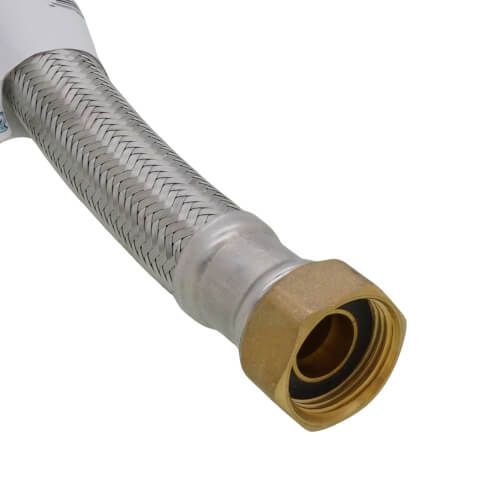

Sharkbite UR3088FX18BV Max 3/4 inch Ball Valve x 3/4 inch FIP x 18 inch Stainless Steel Flexible Water Heater Connector

Product Description

The SHARKBITE UR3088FX18BV Max 3/4 Inch Ball Valve x 3/4 Inch FIP x 18 Inch Stainless Steel Flexible Water Heater Connector is a push-to-connect brass plumbing fitting. It is designed for versatile water heater installations, compatible with PEX, Copper, CPVC, PE-RT, and HDPE pipes. This lead-free connector features durable stainless steel braided construction and an integrated 3/4 inch ball valve, allowing for convenient water supply shut-off in residential and commercial applications. It is rated for 200 psi and 32 to 200 deg F.

• Push-to-connect design for easy installation in plumbing systems
• Compatible with PEX, Copper, CPVC, PE-RT, and HDPE pipes for broad application
• Features an integrated 3/4 inch ball valve for water supply control

Product Highlights

This connector offers a push-to-connect design for quick installation, compatible with multiple pipe types. It features an integrated ball valve for convenient water supply shut-off and is suitable for both residential and commercial water heater applications.

Product Information

Standard Information

• Brand: SHARKBITE
• Manufacturer Part Number: UR3088FX18BV

Technical Specifications

• Brand: SHARKBITE
• MPN: UR3088FX18BV
• Manufacturer: Reliance Worldwide Corporation
• Style: SharkBite Max
• Type: Braided Flexible Water Heater Connector
• Nominal Size: 3/4 x 3/4 inch
• Connection Type: Push-Fit x FIP
• Overall Length: 18 inch
• Pressure Rating: 200 psi
• Temperature Rating: 32 - 200 deg F
• Body Material: DZR Lead-Free Brass
• Hose Material: Stainless Steel Braided
• Inner Core Material: EPDM
• Nut Material: Brass
• Valve Type: Ball
• Compatible Pipe Materials: PEX, Copper, CPVC, PE-RT, HDPE
• Application: Plumbing
• Thread Type: Female
• Fitting System Compatibility: Push Fit
• Insertion Depth: 1-1/4 inch
• Approvals & Listings: ASME A112.18.6/CSA B125.6, ASME A112.4.14/CSA B125.14 (Ball Valve), NSF/ANSI 14, NSF/ANSI/CAN 61, NSF/ANSI/CAN 372
• Lead Free: Yes
