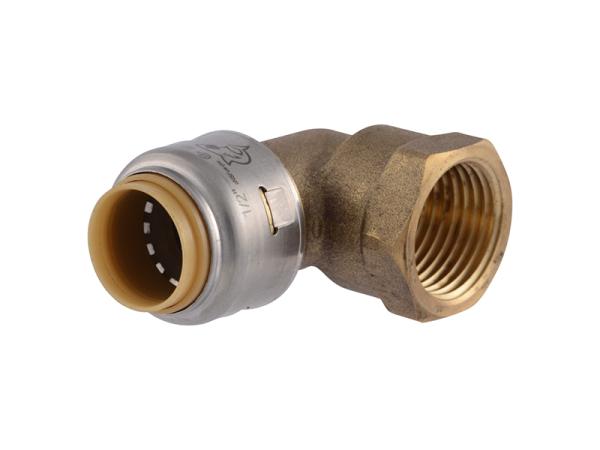

Sharkbite UR308 Max 90 Degree Female Adapter Elbow 1/2 Inch Push-to-Connect x 1/2 Inch FNPT Pack of 6

Product Description

The SharkBite UR308 Max 90-Degree Female Adapter Elbow simplifies pipe transitions. This brass push-to-connect fitting features a 1/2-inch CTS end that connects to PEX, copper, CPVC, PE-RT, or HDPE SDR-9 pipe, and a 1/2-inch FNPT threaded end that connects to a male threaded fitting. It installs without soldering, glue, or special tools.

• Installs quickly on wet lines and can be rotated after installation; remove with a disconnect clip, tongs, or pro tool (sold separately).
• DZR brass body with stainless-steel retainer collar delivers added strength and up to 50% lower insertion force for faster, more secure installs
• Rated to 200 degrees F and 400 PSI; approved for underground and behind-the-wall applications (wrapping required if burying)

Product Highlights

This elbow fitting is ideal for pipe transitions in tight or wet spaces. It is made from durable DZR brass and includes a reinforced stainless-steel collar for added strength.

Product Information

Standard Information

• Brand: SHARKBITE
• Manufacturer Part Number: UR308
• Country of Origin: America

Technical Specifications

• Connector Type: Elbow
• Thread Size: 0.5 inch
• Thread Type: NPT
• Size: 1/2 in., 6 Pack
• Style: SharkBite Max
• Exterior Finish: Brass
• Material Type: Brass
• SKU: UR308
• Pipe Size: 1/2 Inch
• Material: DZR Brass
• Lead Free: Check
• Quantity: 1/Each
• Length: 2 1/8 Inches
• Width: 1 Inch
• Height: 1 1/2 Inches
• Features: Corrosion-Resistant, Crack-Resistant, EDPM O-Ring
• Maximum Pressure: 400 PSI
• Maximum Water Temperature: 200 Degrees F
• Type: Elbow Fittings
• Brand: SHARKBITE
• Fitting Side A Connection Type: Push-Fit
• Fitting Side B Connection Type: FNPT
• Fitting Side A Pipe Size: 1/2 in
• Fitting Side B Pipe Size: 1/2 in
• Fitting Side A Tube Outer Diameter: 1/2 in
• Fitting Side B Tube Outer Diameter: 1/2 in
• Fitting Material: Brass
• Fitting Thread Size: 1/2 In.
• Includes Pre-Applied Thread Sealant: Pre-Applied Thread Sealant No
• Maximum Operating Pressure: 250 psi
• MPN: UR308
• Compatible Brand: SHARKBITE
