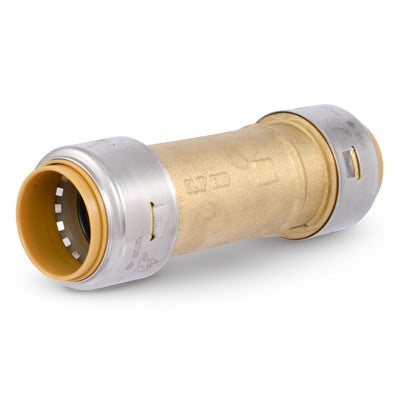

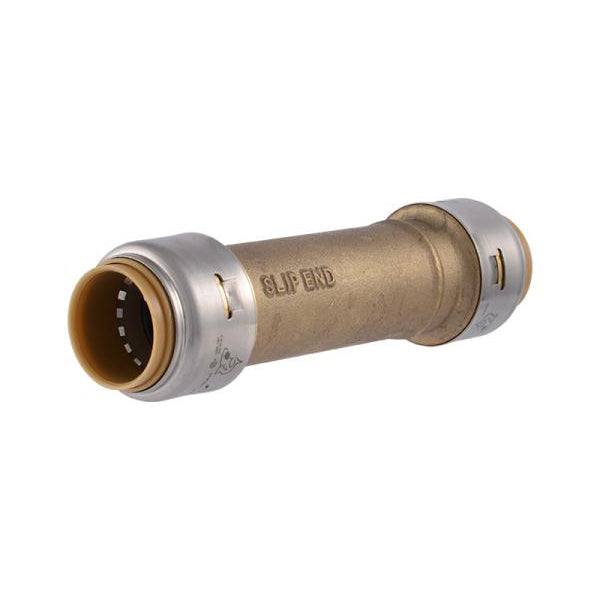

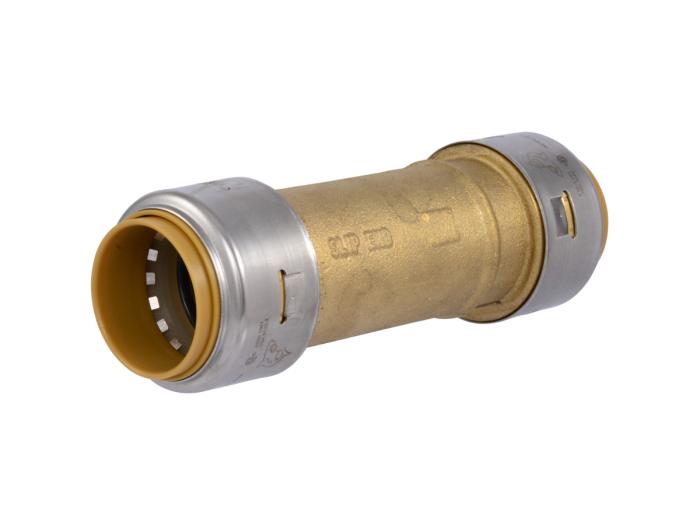

Sharkbite UR3020 Lead-Free Brass Slip Coupling 1 inches x 1 inches

Product Description

The SHARKBITE UR3020 lead-free brass slip coupling joins copper, CPVC, or PEX pipe in any combination. These lead-free brass fittings feature stainless steel teeth for a secure grip. SharkBite push-fit fittings eliminate the need for soldering, clamps, unions, or glue. The stainless steel teeth bite down and grip tight, while a specially formulated O-ring compresses to create a secure seal, even in wet conditions.

• Join copper, CPVC or PEX pipe in any combination
• Lead-free brass fittings with stainless steel teeth
• No soldering, clamps, unions or glue required

Product Highlights

Solid forged lead-free brass construction offers exceptional strength and performance. PSI rating: 400.

Product Information

Standard Information

• Brand: SHARKBITE
• Manufacturer Part Number: UR3020

Technical Specifications

• Pipe size: 1" x 1"
• PSI rating: 400
• SKU: UR3020
• Material: DZR Brass
• Approvals & Listings: ASSE 1061, CSA B125.3, NSF/ANSI 14, NSF/ANSI/CAN 61, NSF/ANSI/CAN 372, ASTM E84, CAN/ULC S102.2, UL 263, ASTM E119, CAN/ULC S102
• End Connection: Push Fit
• Fitting Size: 1"
• Fitting Type: Coupling
• Manufacturer Name: Sharkbite
• Nominal Size: 1 Inch
• Temperature Rating: 200 deg F
• Finish: Natural Brass/Polished Chrome
• Dimensions: 1.64 in Diameter x 4-1/2 in Length
