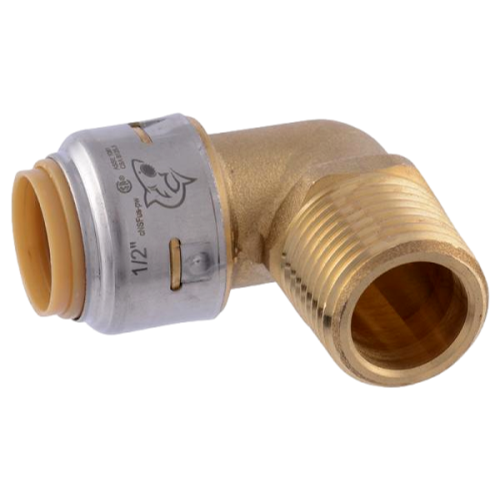

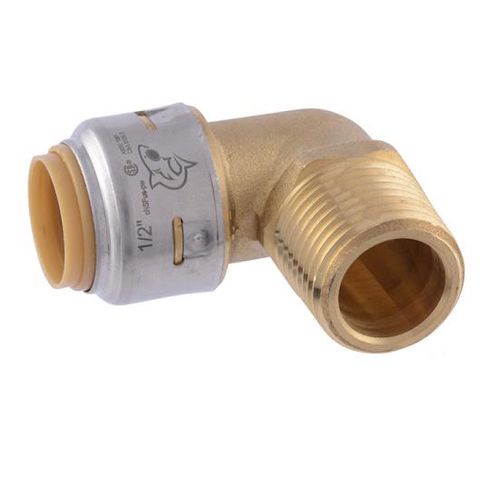

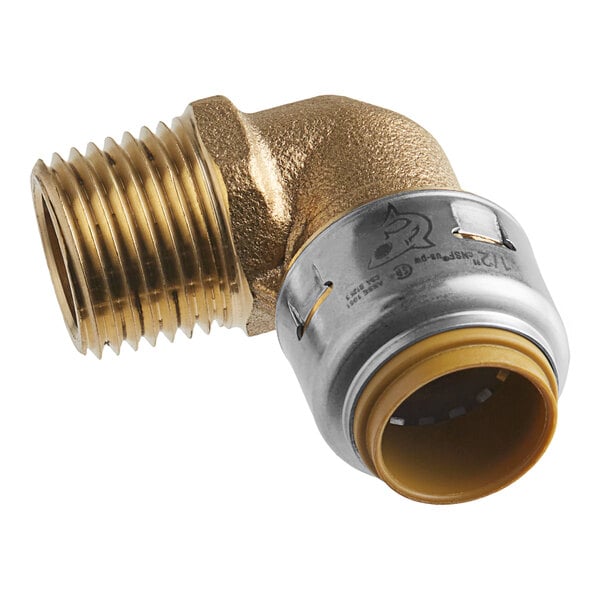

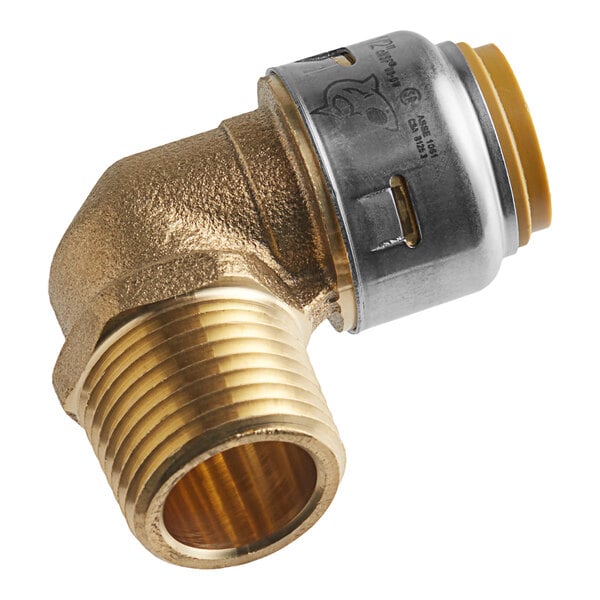

Sharkbite UR280 Max Push Male Adapter Elbow 1/2 inches x 1/2 inches

Product Description

The SHARKBITE UR280 Max male adapter elbow is designed to connect CTS pipe to a FNPT threaded connection. Compatible with PEX, copper, CPVC, PE-RT or HDPE SDR-9, the Max adapter elbows are ideal for pipe transitions. Fittings certified to 200 PSI and 200 degrees F (93 degrees C).

• Connects PEX, copper, CPVC, PE-RT or HDPE SDR-9 pipe in any combination.
• Fittings require half the insertion effort for smoother and faster connections.
• Stainless-steel collar allows fittings to withstand 2x the pressure rating.

Product Highlights

This elbow fitting features a push-to-connect design for quick and easy installation in tight spaces. Its DZR brass body prevents corrosion and cracking.

Product Information

Standard Information

• Brand: SHARKBITE
• Manufacturer Part Number: UR280
• Country of Origin: America

Technical Specifications

• Size: 1/2"
• PEX Size: 1/2"
• Material: Brass
• Application: Plumbing, Heating
• Max Pressure (PSI): 200
• Standards Met: NSF
• Tubing Compatibility: CPVC, OD Controlled Copper, PEX
• Max Temp (F): 200
• Thread Size: 1/2 x 1/2
