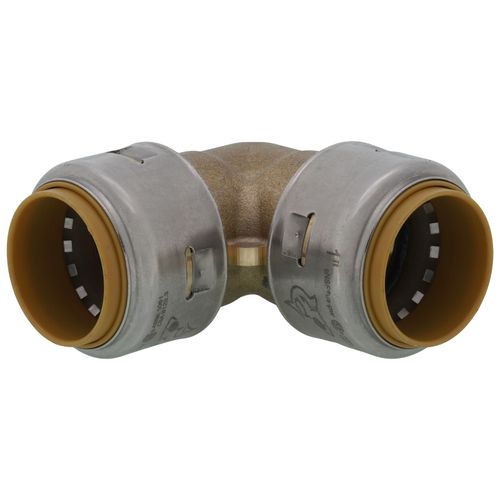

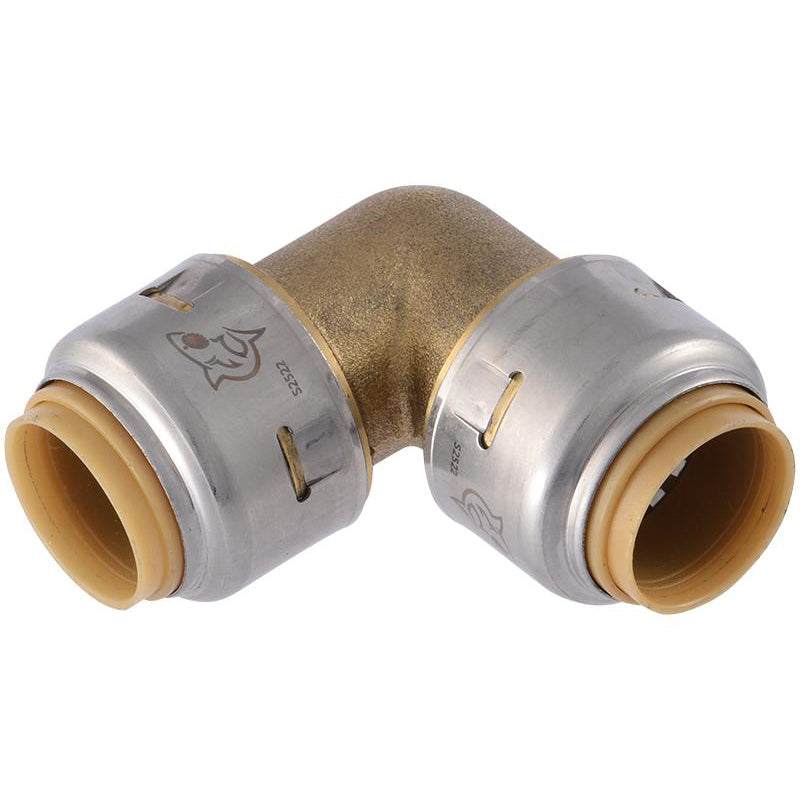

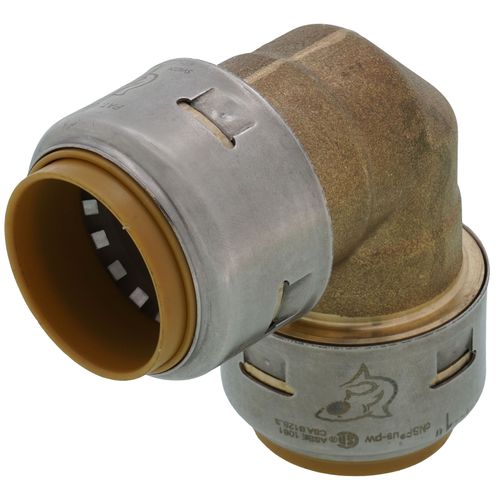

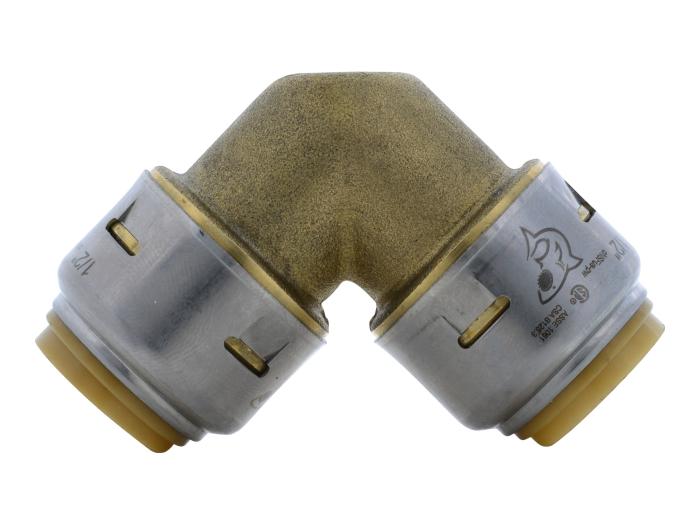

Sharkbite UR260 1 inches x 1 inches 90-Degree Elbow (Lead Free)

Product Description

The SHARKBITE UR260 Max 90-degree elbow features a push-to-connect design for installing potable water pipe. This 1" x 1" brass elbow fitting is suitable for tight spaces and can be installed on wet lines without special tools, crimping, soldering, or glue. It is rated to 200F and 400 psi.

• Connects PEX, copper, CPVC, PE-RT or HDPE SDR-9 pipe.
• Half the insertion effort, double the pressure rating.
• Can be installed on wet lines and pressure tested immediately.

Product Highlights

Innovative push-to-connect design allows for quick installation. High-performance DZR lead-free brass body.

Product Information

Standard Information

• Brand: SHARKBITE
• Manufacturer Part Number: UR260

Technical Specifications

• Thread Size: 1"
• Application: Heating
• Size: 1"
• Fitting System Compatibility: Push Fit
• Tubing Compatibility: CPVC, OD Controlled Copper, PEX
• Max Temp (F): 200°F
• Material: Brass
• Max Pressure (PSI): 400
• Pipe Size: 1 in. x 1 in.
• Common Applications: Behind-the-wall with no access panels, Underground when wrapped in silicone tape
• Approvals & Listings: ASSE 1061, CSA B125.3, NSF/ANSI 14, NSF/ANSI/CAN 61, NSF/ANSI/CAN 372, ASTM E84, CAN/ULC S102.2, UL 263, ASTM E119, CAN/ULC S101
• End Connection: Push Fit
• Fitting Size: 1"
• Fitting Type: 90 Elbow
• Manufacturer Name: Sharkbite
• End Style: Push Fit
• Fitting/Connector Type: 90 deg Elbow
• Nominal Size: 1 in
• Pressure Rating: 400 psi
• Type: Elbow
• Product Type: Item
• Length: 2.95"
• Width: 1.61"
• Height: 2.95"
• Weight: 0.47 lbs.
