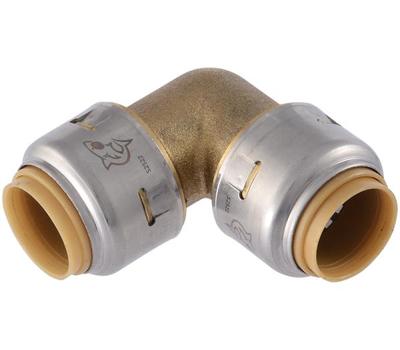

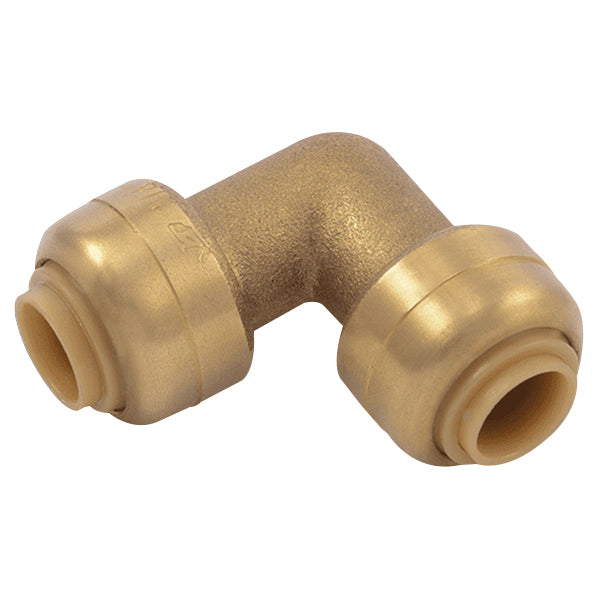

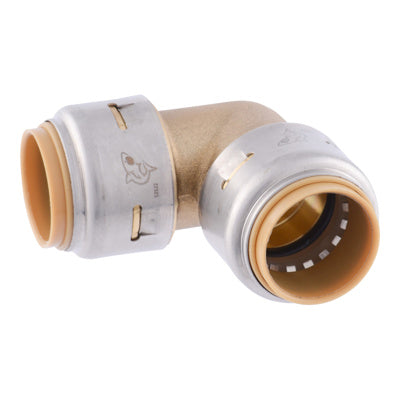

Sharkbite UR256 3/4 in. Brass 90-Degree Push-to-Connect Elbow

Product Description

The SharkBite UR256 3/4 in. Brass 90-Degree Push-to-Connect Elbow allows a 90-degree connection to 3/4 in. Copper, CPVC, or PEX Pipe. These fittings do not require soldering, clamps, unions, or glue. Just insert the pipe, and the stainless steel teeth bite down and grip tight, while a specially formulated O-ring compresses to create a perfect seal.

• Fast and easy install; can be installed in wet lines
• No PEX tube liner required, eliminating flow restriction when used on Copper/CPVC
• Lead-free, made of high-quality forged DZR brass with reinforced stainless steel

Product Highlights

The SharkBite UR256 elbow is certified for potable water supply and hydronic heating applications. Push-to-connect design makes for quick and easy installation, ideal for working in tight spaces.

Product Information

Standard Information

• Brand: SHARKBITE
• Manufacturer Part Number: UR256
• Country of Origin: AU

Technical Specifications

• MPN: UR256
• Brand: SHARKBITE
• Size: 3/4"
• Material: Brass
• Category: Elbow
• Model Number: UR256
• Selling Size: 3/4|in
• Body Material: Lead Free DZR Brass
• Catalog Number: UR256
• Compatible With: PEX, Copper, CPVC, PE-RT, HDPE
• Maximum Pressure Rating: 250|PSI
• Maximum Temperature Rating: +200|deg F
• Application: Residential and Commercial Potable Water, Recirculation, Hydronic Heating/Cooling, and Direct Burial
• Angle: 90 deg
• Connection Size: 3/4 in CTS
• Connection Type: Push-to-Connect
• Finish: Natural
• Item Name: Elbow
• Pressure Rating: 200 psi
• Temperature Rating: 200 deg F
• Fitting Side A Connection Type: Push-Fit
• Fitting Side B Connection Type: Push-Fit
• Fitting Side A Pipe Size: 3/4 in
• Fitting Side B Pipe Size: 3/4 in
• Fitting Side A Tube Outer Diameter: 7/8 in
• Fitting Side B Tube Outer Diameter: 7/8 in
• Fitting Material: Brass
• Fitting Thread Size: Not Applicable
• Material Grade: DZR Brass
• Includes Pre-Applied Thread Sealant: Pre-Applied Thread Sealant No
• Maximum Operating Pressure: 250 psi
• Pipe size: 3/4" x 3/4"
• PSI rating: 400
