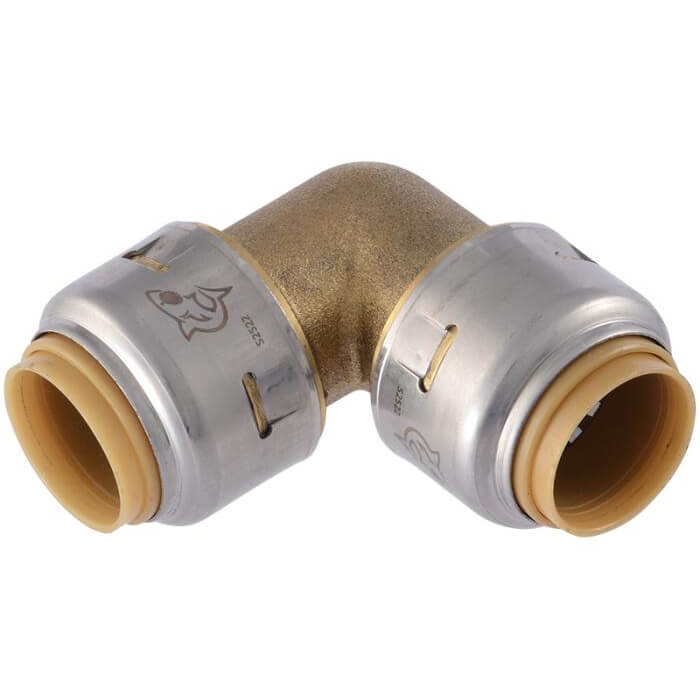

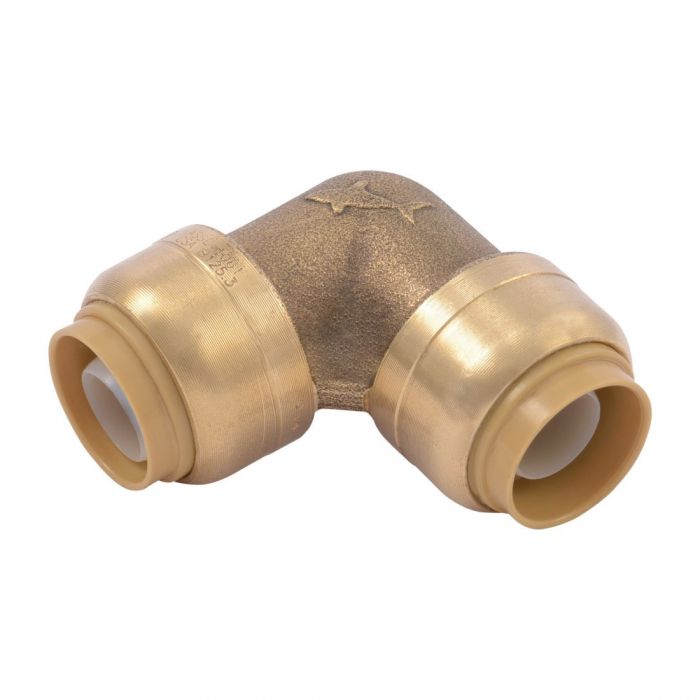

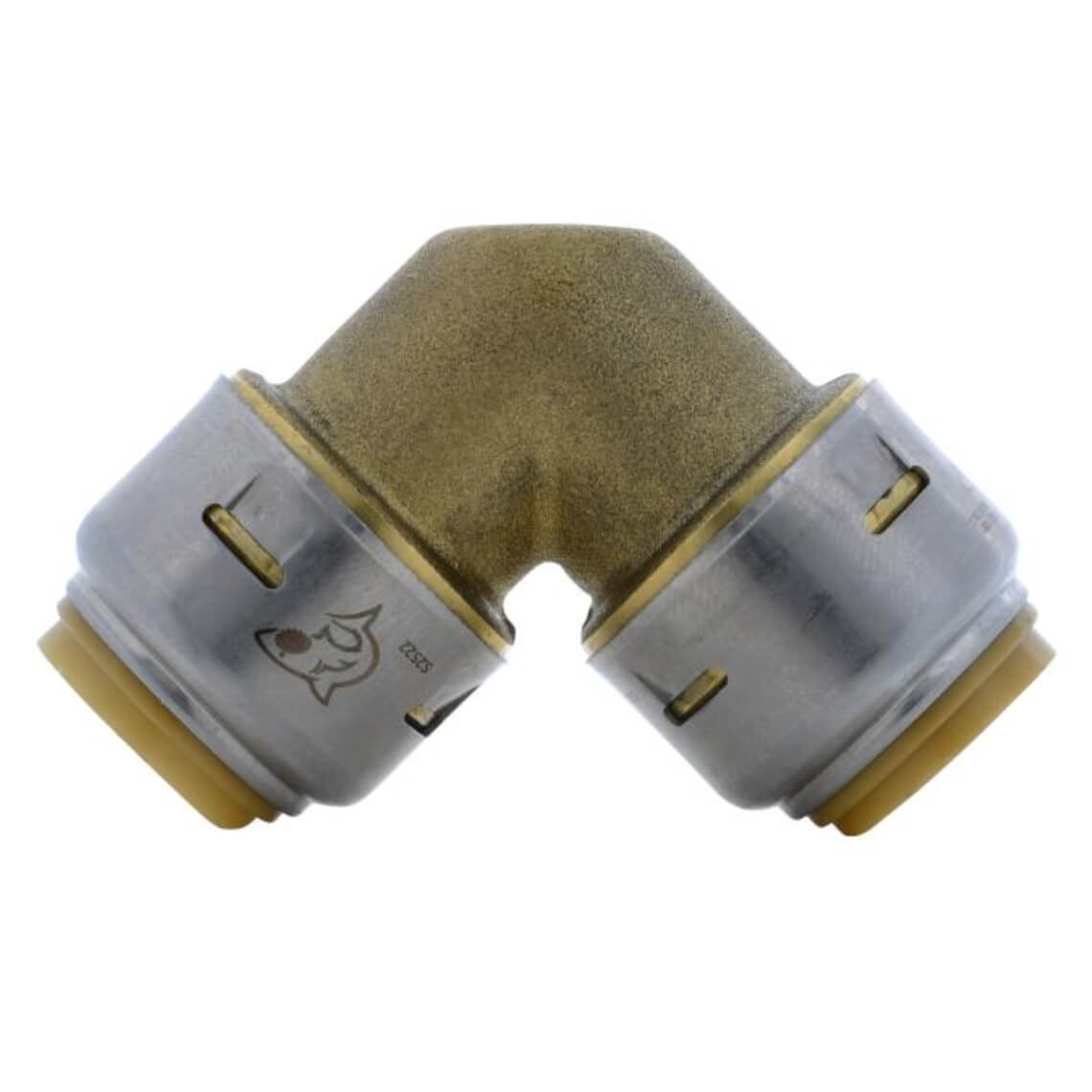

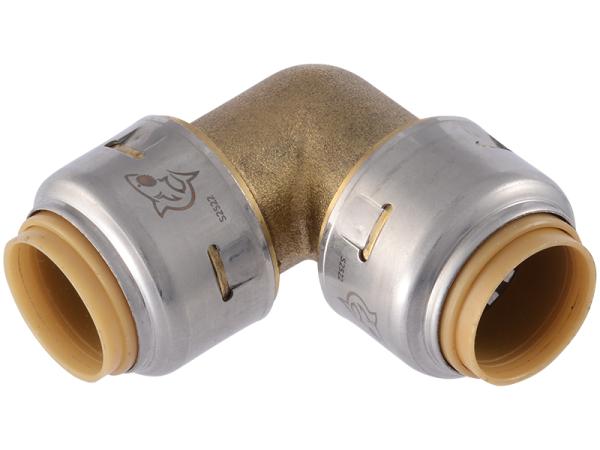

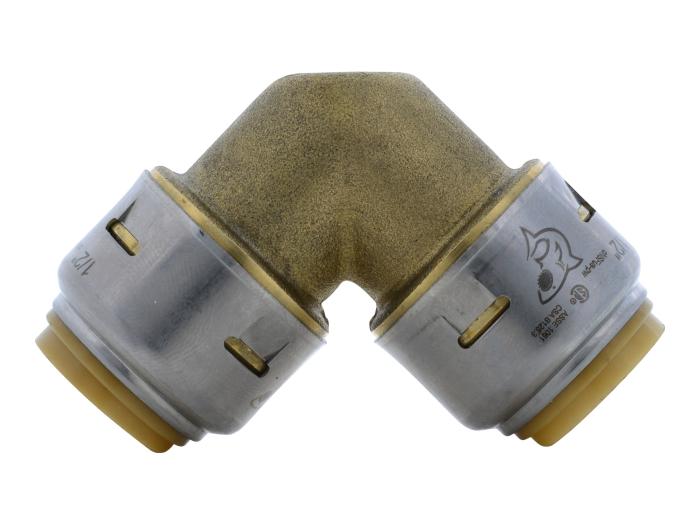

Sharkbite UR248 90 degree elbow 1/2 inch PTC x 1/2 inch PTC

Product Description

The SHARKBITE UR248 90-degree elbow features a push-to-connect design for quick and easy installation of potable water pipes. This 1/2 inch elbow allows connection of copper, PEX CPVC, or PE-RT pipe. It is designed for potable water and radiant heating applications and rated up to 200 deg F and 200 psi.

• Instant push-fit connection, no soldering, clamps, unions or glue required
• For use with copper, CPVC and PEX pipe
• Approved to be used underground and behind walls without access panels

Product Highlights

This SharkBite elbow provides a strong, corrosion resistant, and durable fitting for potable water and hydronic heating systems. Its push-to-connect design allows for easy installation.

Product Information

Standard Information

• Brand: SHARKBITE
• Manufacturer Part Number: UR248
• Country of Origin: Import

Technical Specifications

• Manufacturer: Reliance Worldwide Corporation
• Nominal Size: 1/2 in
• Finish: Natural Brass/Polished Chrome
• Pressure Rating: 200 psi
• Temperature Rating: 200 deg F
• Angle: 90 deg
• Material: Brass
• Fitting Type: 90 Degree Elbow
• Connection Type: Push-to-Connect
• Max Temp (F): 200°F
• Tubing Compatibility: CPVC, PEX, OD Controlled Copper
• Fitting System Compatibility: Push Fit
• Insertion Depth: 15/16"
• Max Pressure (PSI): 200
• Application: Heating
• Standards Met: NSF
• Size: 1/2"
• PEX Size: 1/2"
• Body Material: Lead Free DZR Brass
• Catalog Number: UR248
• Compatible With: PEX, Copper, CPVC, PE-RT, HDPE
• Lead-Free: Yes
• Suitable Pipe: PEX, Copper, CPVC, PE-RT and SDR-9 HDPE
