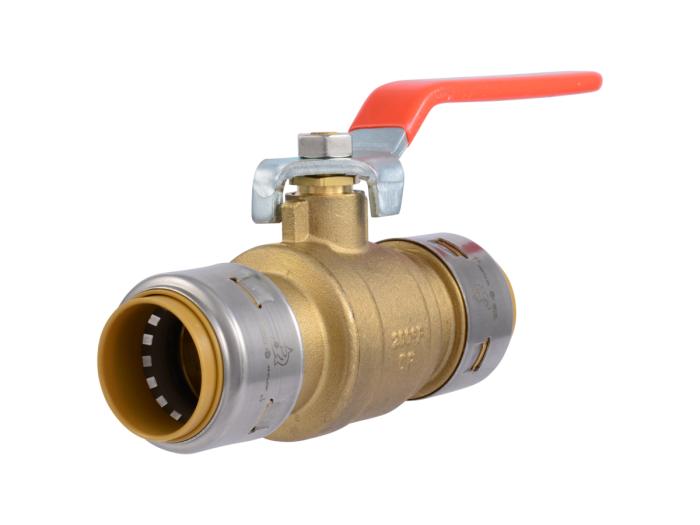

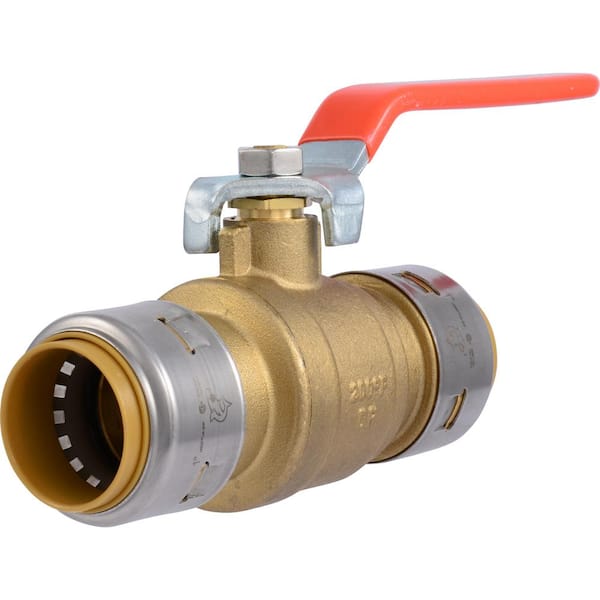

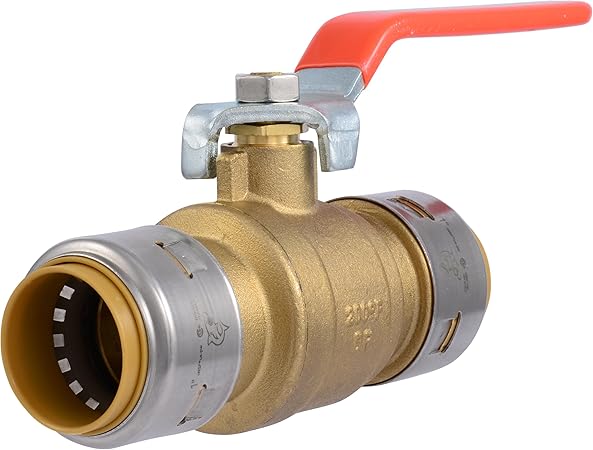

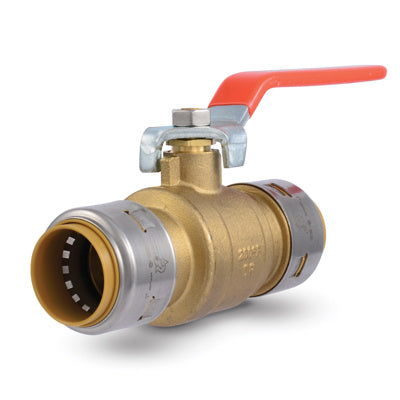

Sharkbite UR22223 Ball Valve 1 inches x 1 inches

Product Description

The SHARKBITE UR22223 ball valve features a push-to-connect design for quick and easy installation of new or replacement ball valves. Compatible with PEX, copper, CPVC, and PE-RT pipe without soldering, clamps, or glue. The valve can be installed where water shut off is needed and rotated after install for easier installation in tight spaces.

• Connects PEX, copper, CPVC, PE-RT, or HDPE pipes.
• No special tools, crimping, soldering, or glue required.
• Rated to 200 degrees F and 250 psi.

Product Highlights

This ball valve is easy to install and provides a secure, leak-free connection for various pipe types.

Product Information

Standard Information

• Brand: SHARKBITE
• Manufacturer Part Number: UR22223
• Country of Origin: Import

Technical Specifications

• Fitting System Compatibility: Push Fit
• Tubing Compatibility: OD Controlled Copper, CPVC, PEX
• Application: Plumbing, Heating
• Max Temp (F): 200°F
• Standards Met: ASTM F1960, ASTM F877, NSF
• Size: 1" x 1"
• Max Pressure (PSI): 250
• Material: Brass
• Exterior Finish: Brass
• Inlet Connection Size: 1 Inches
• Inlet Connection Type: Push to connect
• Outlet Connection Type: Push to connect
• Maximum Operating Pressure: 250 Pound per Square Inch
• Number of Ports: 1
• Outlet Connection Size: 1 Inches
• Specification Met: ASME, ASTM, NSF, ULC, CSA, UL
• Part Number: UR22223
• Item model number: UR22223
• Item Package Quantity: 1
• Number Of Pieces: 1
• Included Components: Brass Push Ball Valves
• Batteries Required?: No
• Approvals & Listings: ASME A112.4.14/CSA B125.14, NSF/ANSI 14, NSF/ANSI/CAN 61, NSF/ANSI/CAN 372
• Designed for use with: PEX, copper, CPVC PE-RT or HDPE pipe
• Features: stainless steel teeth to grip the pipe tightly
• Design: Rotatable and removable design allows quick adjustments
• Actuator Type: Lever Operated
• Ball Material: Brass
• Body Material: Brass
• Domestic/Import: Import
• End Style: Push-Fit
• Finish: Polished Chrome
• Inlet to Outlet Length: 4.4 in
• Media: Water
• Nominal Size: 1 In
• Port Type: Full
• Pressure Rating: 200 psi
• Softgoods Material: EPDM
• Temperature Rating: 200 deg F
• Trim Material: Brass Stem
• PSI rating: 250
