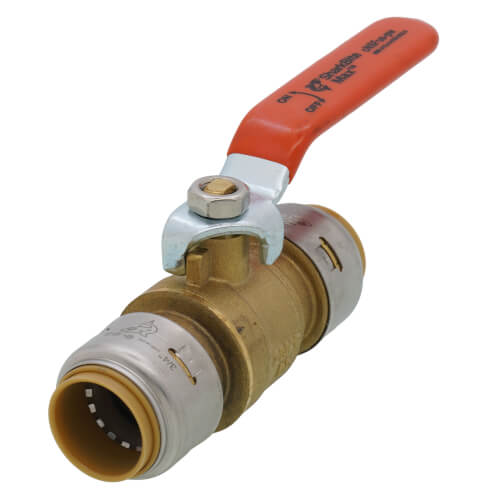

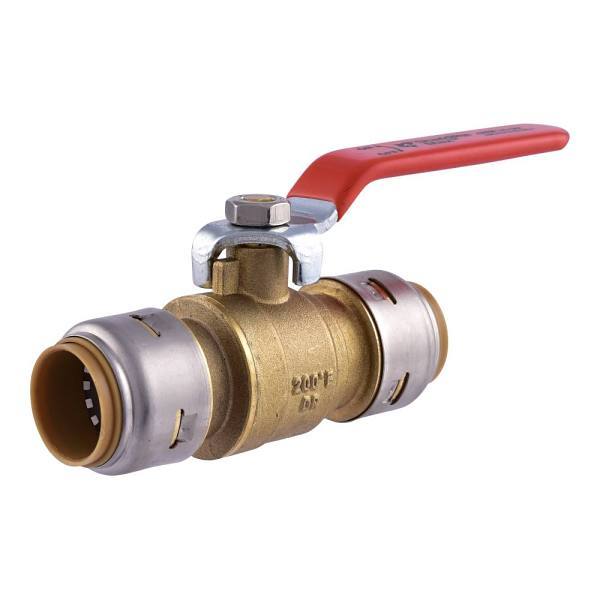

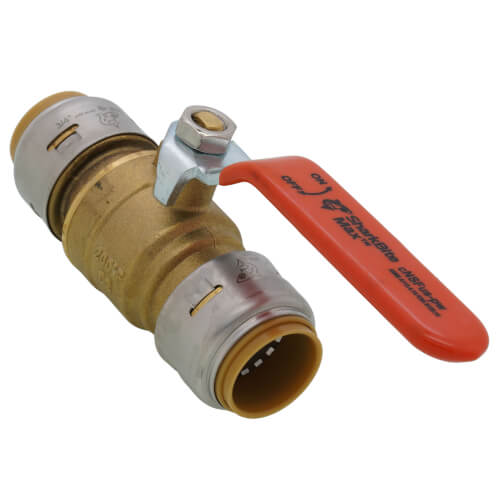

Sharkbite UR22185-12 Max Ball Valve, 3/4 inches

Product Description

The SHARKBITE UR22185-12 Max ball valve features a push-to-connect design for quick installation of new or replacement ball valves. Compatible with PEX, copper, CPVC and PE-RT pipe without soldering, clamps, or glue. The valve can be installed where water shut off is needed and rotated after install for easier installation in tight spaces.

• Fastest way to connect PEX, copper, CPVC, PE-RT or HDPE SDR-9 pipe.
• Half the insertion effort, double the burst pressure.
• Can be installed on wet lines and pressure tested immediately.

Product Highlights

This lead-free brass ball valve is easy to install and rated to 200°F and 250 psi. It features a stainless steel retainer for added strength and durability.

Product Information

Standard Information

• Brand: SHARKBITE
• Manufacturer Part Number: UR22185-12
• Country of Origin: VIETNAM

Technical Specifications

• Size: 3/4"
• Max Pressure (PSI): 250
• Material: Brass
• Application: Heating, Plumbing
• Fitting System Compatibility: Push Fit
• Tubing Compatibility: CPVC, OD Controlled Copper, PEX
• Standards Met: ASTM F877, ASTM F1960, NSF
• Max Temp (F): 200°F
• Insertion Depth: 1-1/4"
• Ball Material: Brass
• Body Material: Brass
• Connection Type: Push
• Handle Material: Steel, PVC
• Handle Type: Lever
• Industry Application: Water Supply Distribution
• Lead-Free: Lead-Free
• Maximum Operating Pressure: 400 PSI
• Maximum Operating Temperature: 200 F
• Media: Potable Water
• Operated by: Handle
• Operation Type: Manual
• Package Quantity: 1
• Seal Material: PTFE
• Valve Size: 3/4 in.
• Valve Type: Ball Valves
• Product Height: 1.4 in.
• Product Weight: 0.61 lb.
• Product Width: 5.8 in.
• Connector Type: Push Fit
• Inlet Connection Type: Cross Linked Polyethylene
• Outlet Connection Type: PEX
• Maximum Pressure: 250 Pound per Square Inch
• Number of Ports: 2
• Outlet Connection Size: 0.75 Inches
• Material Type: Brass,Copper,Cpvc,Pex
• Specification Met: ASME, ASTM, NSF, ULC, CSA, UL
