Sharkbite UR134A Max Series pipe coupling 3/4 in UR134A

Product Description

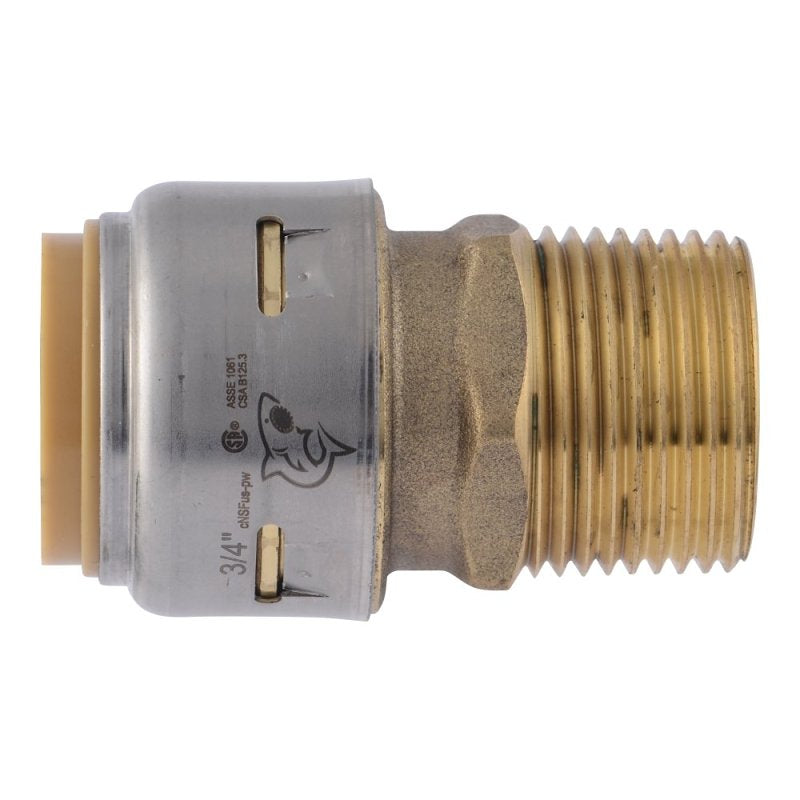

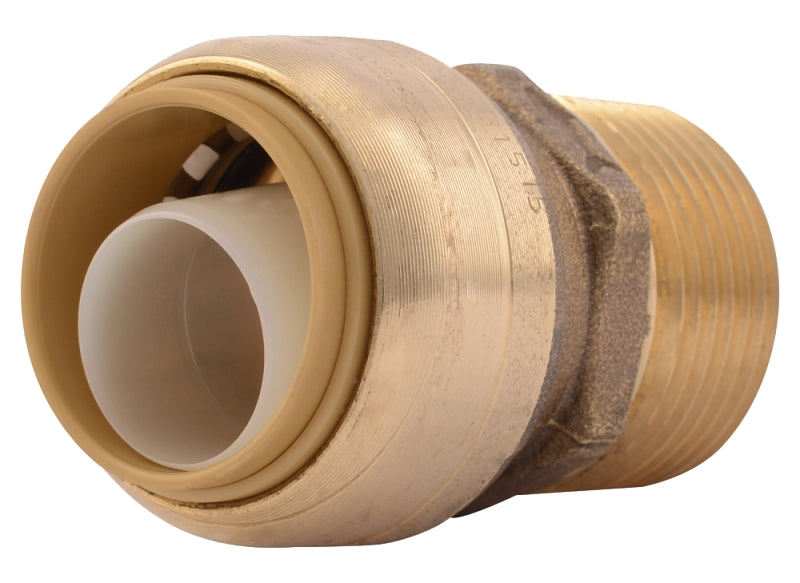

SharkBite UR134A is a Max Series 3/4 in brass push-to-connect pipe coupling that joins PEX, copper, CPVC, PE-RT and HDPE SDR-9 pipe. The fitting features a high-performance DZR lead-free brass body with a stainless steel retainer and collar, supports pressure testability on wet lines, and installs without soldering or special tools. It can rotate after installation, is removable with disconnect tools, and is approved for behind-the-wall and underground use when wrapped.

• 3/4 in push-to-connect coupling for PEX, copper, CPVC, PE-RT and HDPE SDR-9
• DZR lead-free brass body with stainless steel retainer; pressure testable on wet lines
• Installs without soldering, clamps or glue; removable with disconnect clip, tongs or pro disconnect tool

Product Highlights

Push-to-connect 3/4 in coupling, DZR lead-free brass, stainless steel retainer, 250 psi and 200 F rating, rotatable and removable, approved for behind-wall and wrapped underground installations

Product Information

Standard Information

• Brand: SHARKBITE
• Manufacturer Part Number: UR134A

Technical Specifications

• Model Number: UR134A
• Material: DZR lead-free brass
• Retainer Material: Stainless steel
• Nominal Size: 3/4 in
• Compatible Pipe Types: PEX, copper, CPVC, PE-RT, HDPE SDR-9
• Pressure Rating: 250 psi
• Temperature Rating: 200 F
• Installation Method: Push-to-connect
• Rotatable After Installation: Yes
• Removable With: Disconnect clip, disconnect tongs, pro disconnect tool
• Approved Applications: Behind-the-wall; underground when wrapped
• UPC: 697285047921
• Web SKU: 103684335
