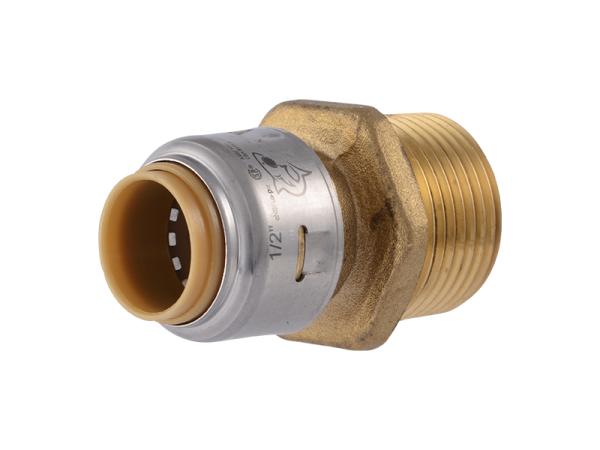

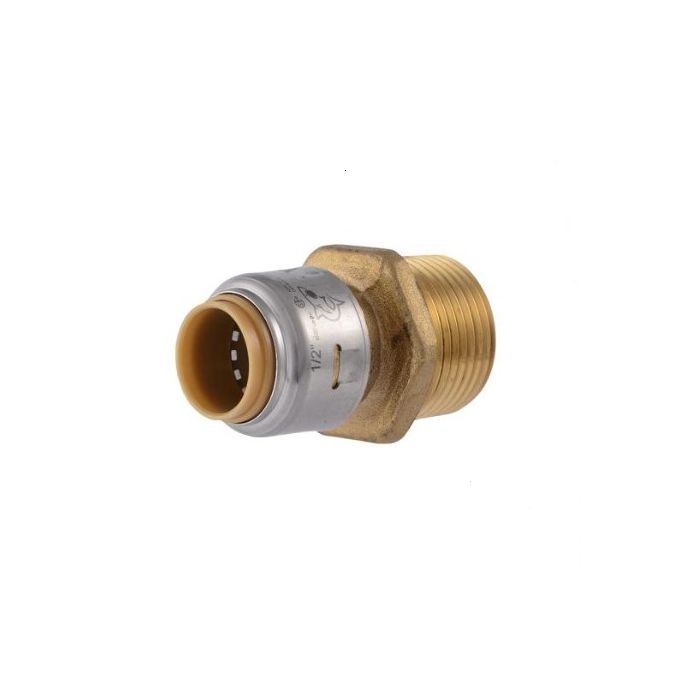

Sharkbite UR116 Push-To-Connect x MNPT Ends Reducing Connector 1/2 PTC x 3/4 MNPT Inch

Product Description

The SHARKBITE UR116 Male Reducing Connector combines a push-to-connect design with a standard MNPT adapter. The push-fit end is compatible with copper, PEX, CPVC, PE-RT or SRD9 HDPE pipes and can be installed without soldering, glue, or tools. It is rated up to 200 deg F and 200 psi. Designed for potable water and radiant heating applications.

• Instant push-fit connection for increased ease-of-use; no soldering, clamps, unions or glue required.
• Polysulfone tube support liner.
• For use with copper, CPVC and PEX pipe.

Product Highlights

This SharkBite reducing connector provides a secure and reliable connection for various plumbing applications, offering ease of use and durability.

Product Information

Standard Information

• Brand: SHARKBITE
• Manufacturer Part Number: UR116
• Country of Origin: Import

Technical Specifications

• Manufacturer: Reliance Worldwide Corporation
• Nominal Size: 1/2 x 3/4 in
• Pressure Rating: 200 psi
• Temperature Rating: 200 deg F
• Finish: Natural Brass/Polished Chrome
• Model / MPN: UR116
• Pipe Size: 1/2 in. x 3/4 in. MNPT
• Material: DZR Brass
• Common Applications: Behind-the-wall with no access panels, Underground when wrapped in silicone tape
• Approvals & Listings: ASSE 1061, CSA B125.3, NSF/ANSI 14, NSF/ANSI/CAN 61, NSF/ANSI/CAN 372, ASTM E84, CAN/ULC S102.2, UL 263, ASTM E119, CAN/ULC S101
• Length: 1.95
• Width: 1.34
• Height: 1.22
• Series: Max Push
• End Style: FNPT
• Fitting/Connector Type: Adapter
• Application Type: Residential and commercial potable water, recirculation, hydronic heating/cooling (up to 50% glycol concentration) and direct burial
• Type: Plumbing
• Brand: Sharkbite Max
• Country of Origin: United States
