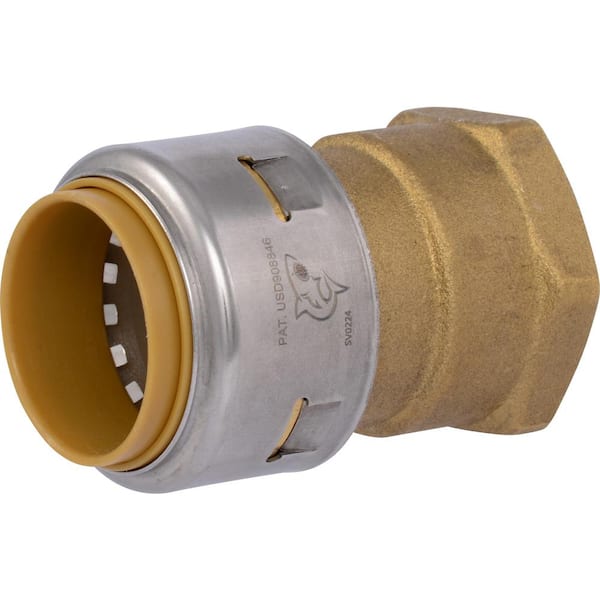

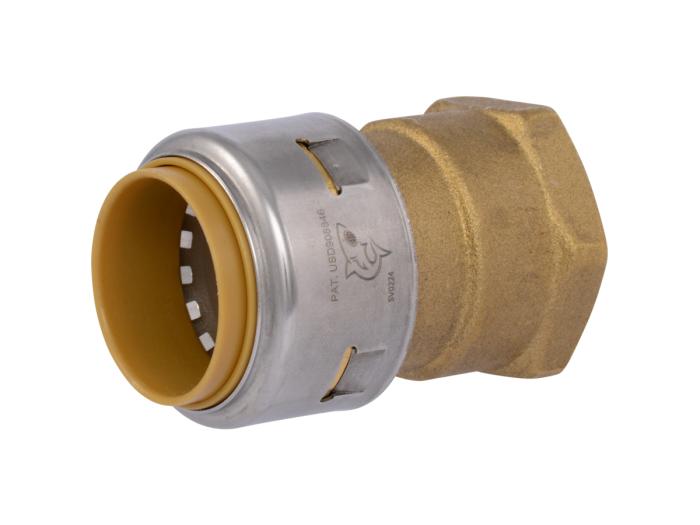

Sharkbite UR094 Max Push Female Adapter 1 in. x 1 in. FNPT

Product Description

The SharkBite UR094 Max female adapter features an innovative push-to-connect design, enabling quick transitions between CTS pipe to MNPT threaded connections. Ideal for tight spaces, these adapters facilitate efficient installations. They connect PEX, copper, CPVC, PE-RT, or HDPE SDR-9 pipe.

• Fastest way to connect PEX, copper, CPVC, PE-RT or HDPE SDR-9 pipe.
• Half the insertion force compared to SharkBite 1st Generation fittings.
• Can be installed on wet lines and pressure tested immediately.

Product Highlights

Innovative push-to-connect design for quick connections. Made with a stainless steel retainer for added strength and durability.

Product Information

Standard Information

• Brand: SHARKBITE
• Manufacturer Part Number: UR094

Technical Specifications

• SKU: UR094
• Pipe Size: 1 in. x 1 in. FNPT
• Description: Straight
• Material: DZR Brass
• Lead Free: Check
• Common Applications: Behind-the-wall with no access panels, Underground when wrapped in silicone tape
• Approvals & Listings: ASSE 1061, CSA B125.3, NSF/ANSI 14, NSF/ANSI/CAN 61, NSF/ANSI/CAN 372, ASTM E84, CAN/ULC S102.2, UL 263, ASTM E119, CAN/ULC S101
• Fitting Type: Adapter
• Application: PEX, Copper, CPVC, PE-RT or HDPE
• Connectivity: Push-to-Connect x FIP
• Manufacturer: Reliance Worldwide Corporation
• Nominal Size: 1 Inch
• Pressure Rating: 200 psi
• Temperature Rating: 200 deg F
• Finish: Natural Brass/Polished Chrome
